CA4-20
4-Conductor Flat Cable, 20 AWG, UL1007, 21/0.16TS Stranding, Sold per Foot
- 20 AWG tinned stranded copper conductor in 21/0.16TS construction
- Rated 300 V with an 80 degrees C conductor temperature rating
- PVC insulation at 0.38 mm nominal wall thickness, RoHS compliant
- Conductor resistance of 50 ohms/km at 20 degrees C
- Dielectric withstand tested at 2000 V AC for one minute

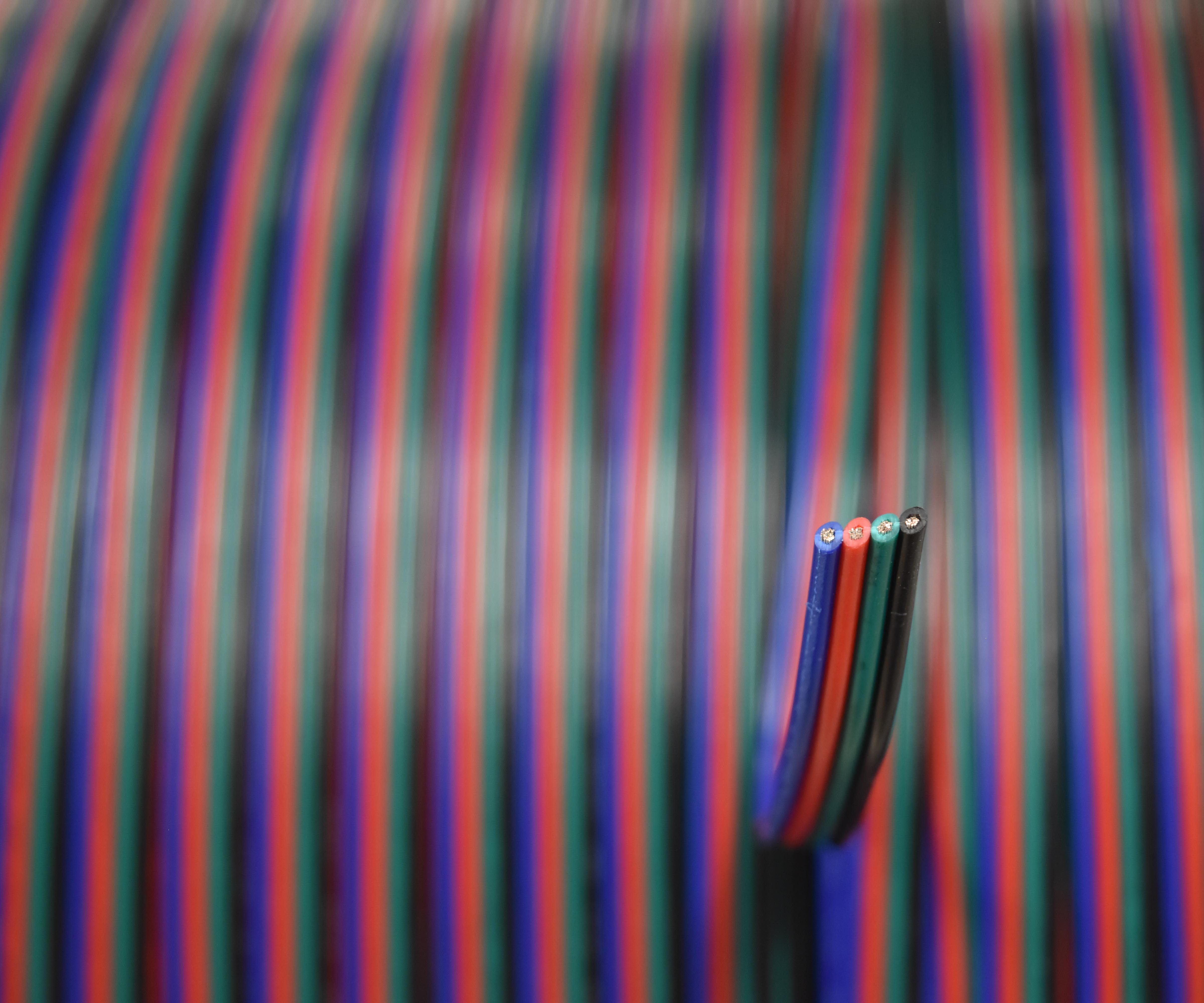

- Supplied from 967-foot rolls and priced by the foot
- Retiro el mismo día en Doral
- Envíos desde Miami, FL
- Garantía del fabricante incluida

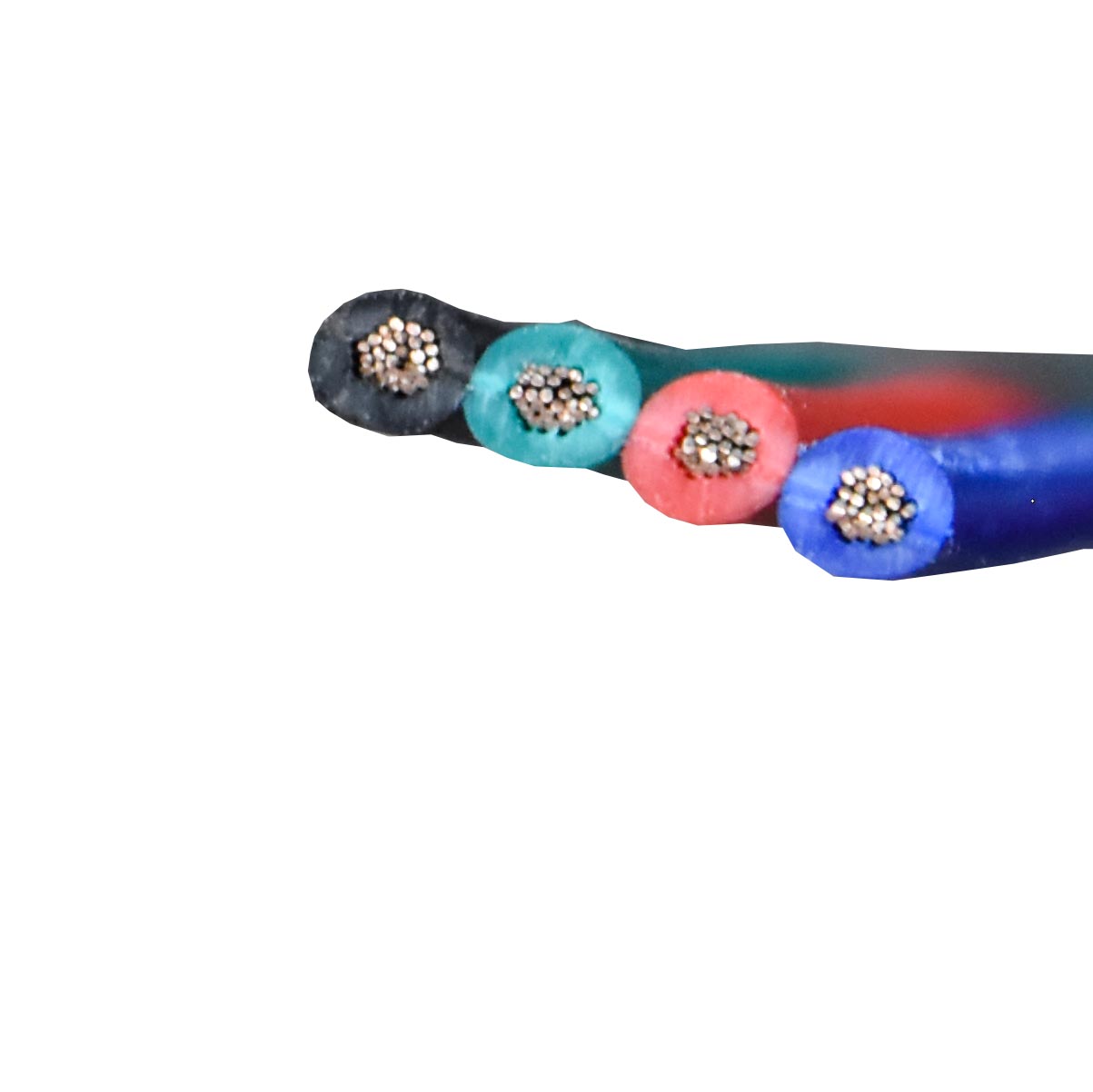

The CA4-20 is a 4-conductor flat cable constructed with 20 AWG tinned stranded copper in a 21/0.16TS configuration, intended for commercial and industrial wiring runs where multiple conductors are carried in a single jacketed profile. It is sold by the foot from rolls of 967 feet, reducing splices and junctions over longer runs. Conductors are PVC insulated to a nominal 0.38 mm wall, producing a flat cross section of 1.8 mm by 3.6 mm. The cable is rated 300 V at 80 degrees C, with a conductor resistance of 50 ohms/km at 20 degrees C and a 2000 V AC dielectric withstand test. Materials meet RoHS environmental standards, the cable is rated to UL1007, and the product carries a one-year warranty.
