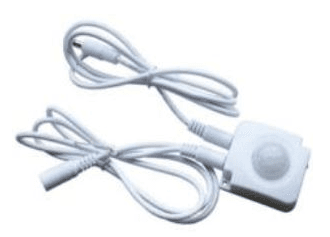

PIR Passive Infrared Sensor Module, 5–24VDC, 4A Output, Adjustable Delay

The C-SDC-IR-4A is a passive infrared (PIR) sensor module designed for automatic control of lighting, exhaust fans, and other electrical loads in corridors, bathrooms, basements, garages, warehouses, and similar applications. It operates on a wide-voltage DC input of 5–24V, making it compatible with a range of low-voltage control systems. The module features a 120-degree cone detection angle with a sensing range of 5–7 meters and supports continuous trigger mode. Output current is rated at 3A. Delay time is field-adjustable from 2 to 360 seconds via an onboard potentiometer. A temperature compensation circuit is included to minimize the effect of ambient temperature variation on sensing distance. Operating temperature range is -20°C to +50°C. Static current draw is less than 50µA. Unit dimensions are 50 × 40 × 22.5 mm (L × W × H). An optional photosensitive function can be configured to restrict operation to nighttime conditions only. No certifications are confirmed in the available source data. No warranty terms are specified in the available source data.
