Flexible LED Sheet Light 24V DC CCT Tunable 90W 480×240mm IP20

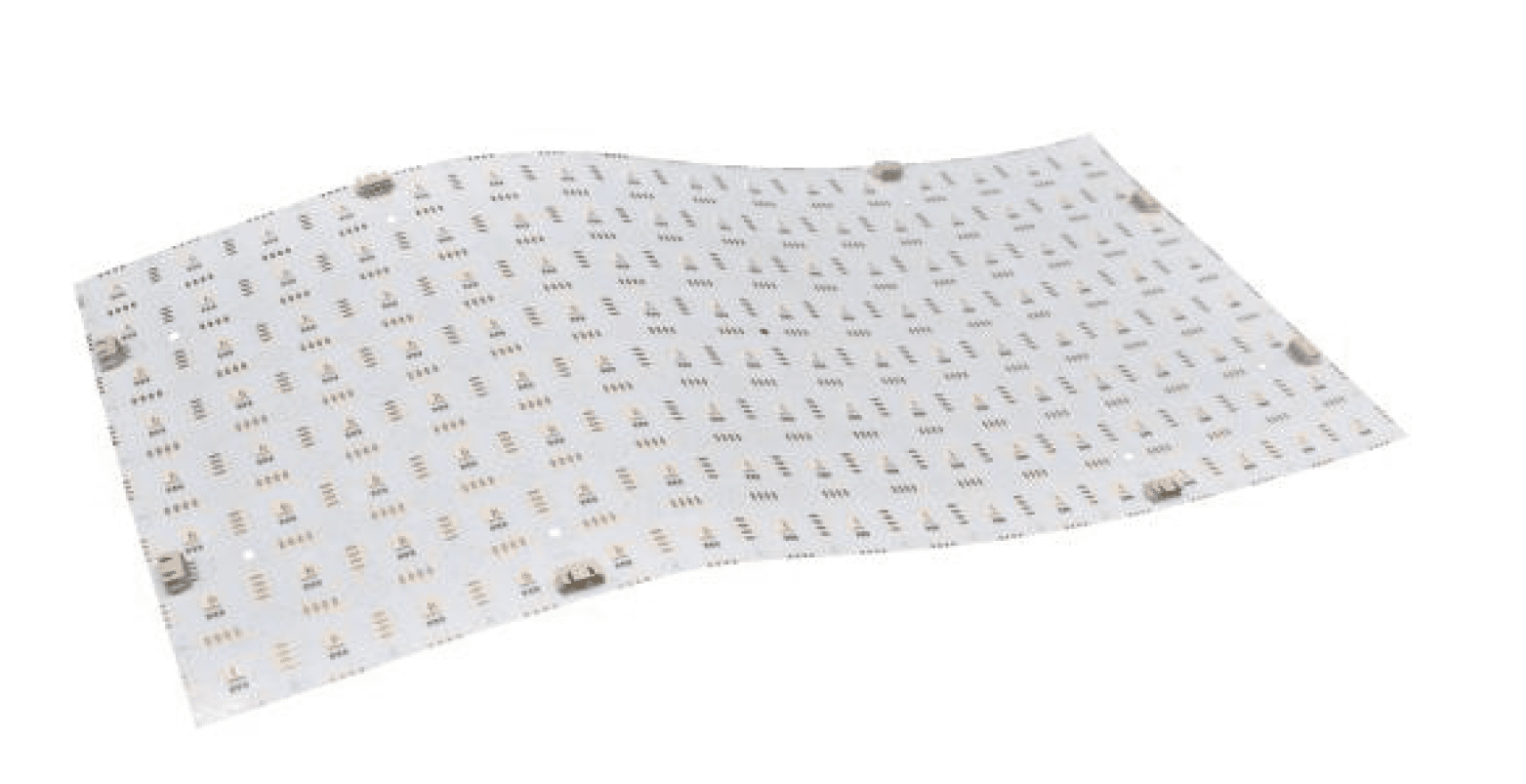

The 7-FS9.5x19-CCT-24V is a flexible SMD LED sheet light designed for 24V DC operation, measuring 480×240mm with a soft, dot-free light output and freely bendable construction. It is suited for letter signage backlighting, light boxes, advertising displays, auditorium walkway lighting, and architectural decoration applications. The sheet operates at a rated power of 45W per color channel (90W combined maximum) with a luminous efficacy of 100 lm/W, CRI 80, and a 180° beam angle. It supports CCT tuning across a warm-to-cool white range and carries an IP20 ingress protection rating for dry indoor environments. Rated lifespan is 50,000 hours, with an operating temperature range of -40°C to +60°C. The unit weighs 0.23 kg and includes 3M adhesive backing and an on-board XH female connector for straightforward installation. This product is UL Listed and RoHS compliant. A 2-year warranty is provided. Installation should be performed by qualified personnel in accordance with applicable electrical safety standards.
