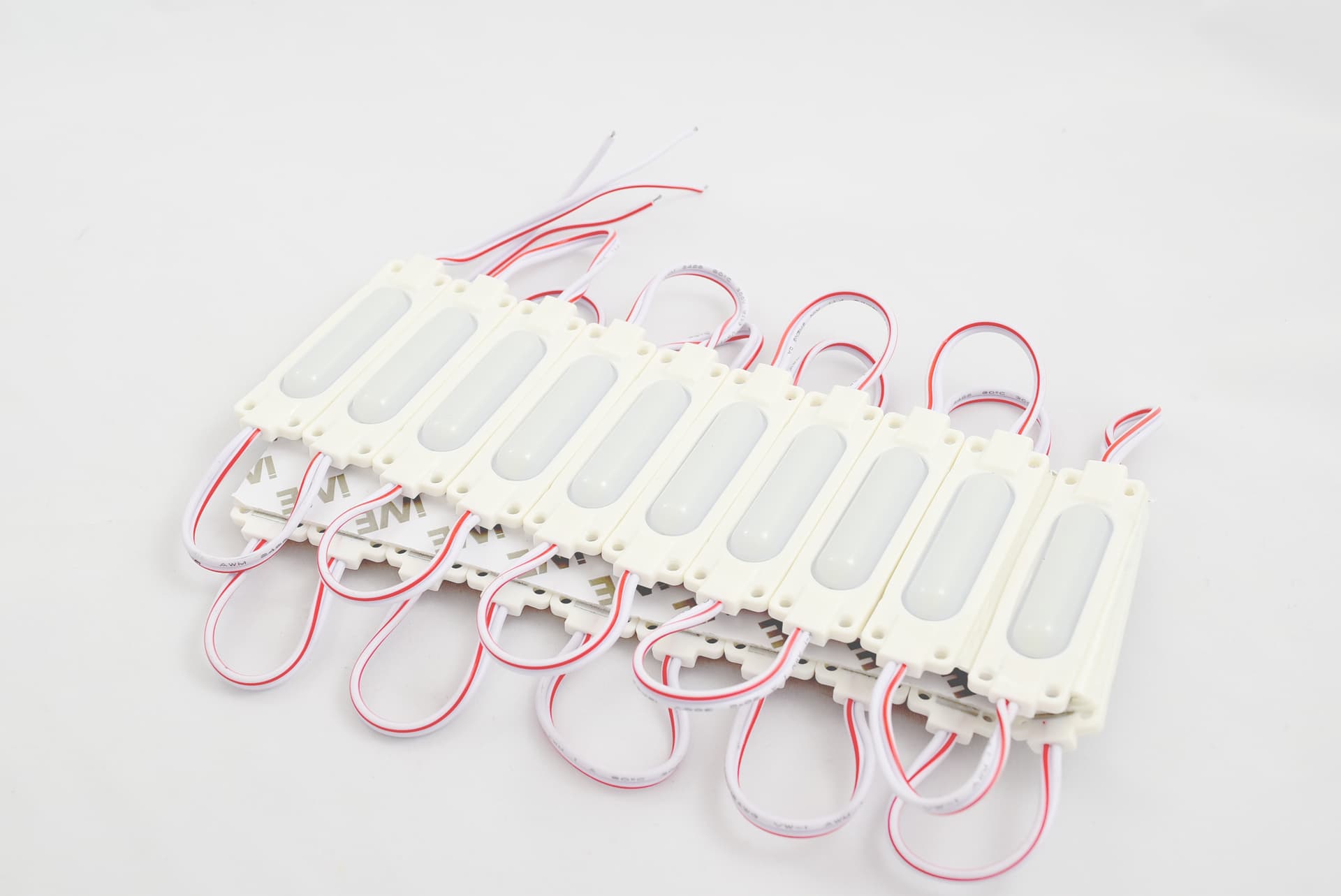

COB LED Sign Module Chain, 12V DC, 7000K, IP65, 160-Degree Beam, 20 Modules per String

The 7-30x1W-COB is a DC 12 V COB LED module chain built for internally illuminated channel letters, light boxes, and cabinet signage with 3-15 cm depth. Each module is housed in an ABS casing with an aluminum PCB, a constant current IC, and a clear optical lens, and is supplied 20 modules per string. Output is 120 lm per module at 7000 K with a CRI of 75 or higher, distributed through a 160-degree lens for even face illumination. Constant-voltage operation, an IP65 protection grade, and a -25 to +60 °C working range suit semi-exposed sign interiors. Rated LED life is 50,000 hours. Modules mount with 3M tape for initial placement, then screws or neutral glass cement. The LED package is LM-80 tested. Warranty is one year.
