SKU: P-S200-UL

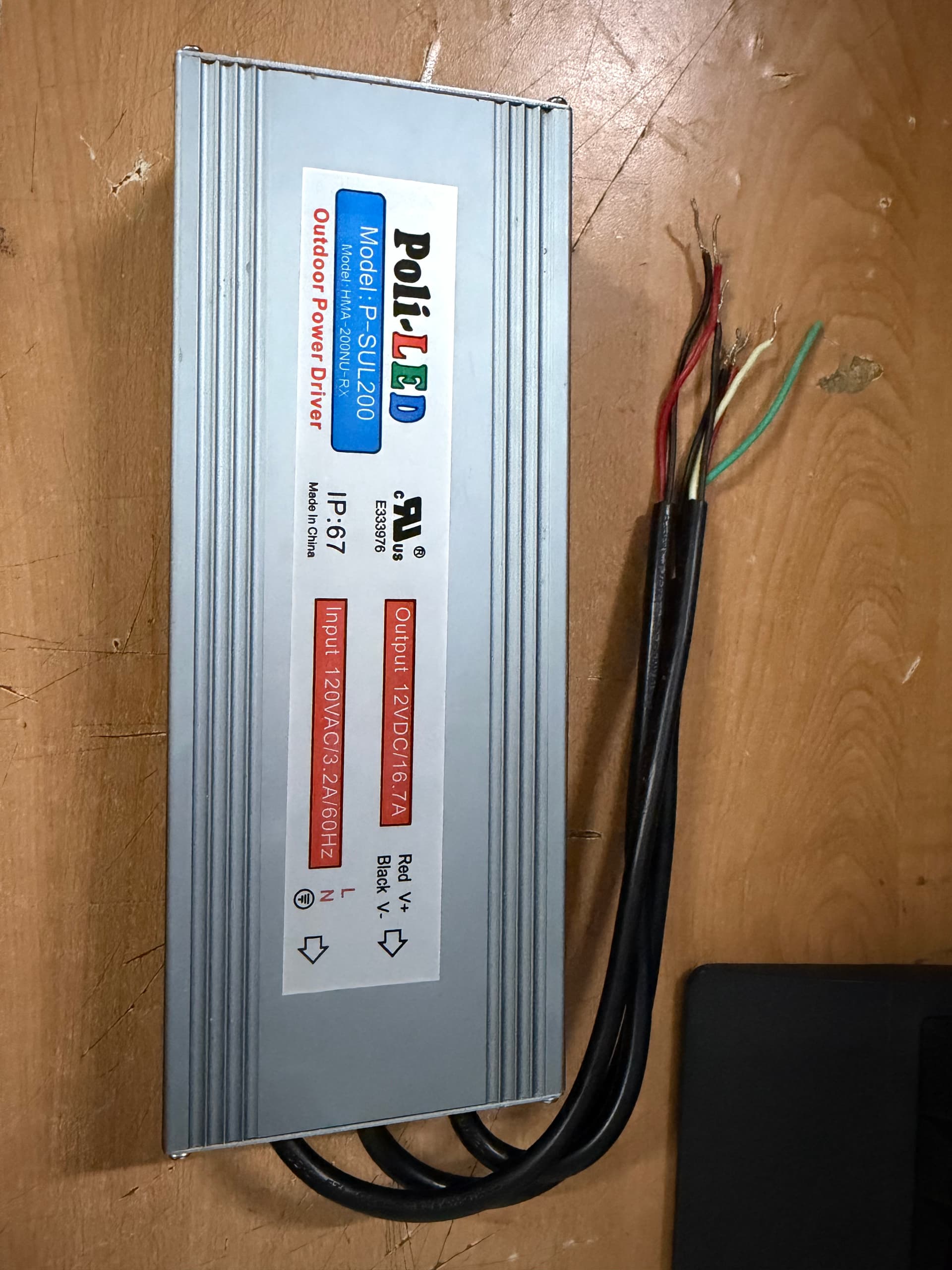

The P-S200-UL is a constant voltage LED waterproof power supply rated at 200W, designed for both indoor and outdoor installations. It converts 100–130VAC input to a regulated 12VDC output and is suited for LED lighting systems, signage, and related low-voltage DC applications requiring a stable power source in demanding environments. The unit delivers up to 16.7A at 12VDC with a typical efficiency of 89–90% and a no-load power consumption of less than 3W. Operating temperature range is -30°C to 50°C. The IP67-rated enclosure provides full dust ingress protection and withstands temporary water immersion, making it suitable for dry, wet, and exposed outdoor conditions. Cooling is achieved through free air convection. Built-in protections include short circuit, overload, overvoltage, and overtemperature. The power supply carries an IP67 rating confirmed by the product datasheet and complies with IEC/EN61347 and IEC/EN60950 safety standards. EMC compliance is noted to EN55015, EN61547, and EN61000 series standards. No warranty term is confirmed in the available source data.
