M-Z-CON2D-CA-10mm
Strip to Strip Connector, 2-Pin 10mm, 15cm Wire, IP20, Max 6A, 5-Pack
Out of stock right now. Ask us for the next delivery date.
Shipping options and charges are confirmed at checkout. Freight quotes are shown separately. Contact the showroom to confirm branch stock before visiting.
- 2-pin connector configuration for 10mm strip width
- 15cm wire length joins strip sections with a gap
- Rated for maximum current draw of 6A
- IP20 environmental rating for indoor use
- Compatible with SMD and COB strip chip types
- Sold in a 5-piece bag for multiple connections
At a glance
- IP rating
- IP20
- Strip Width
- 10 mm
- Maximum Current
- 6 A
- LED Chip Type
- SMD & COB
- Wire Length
- 5.9 in
- Check delivery costs and freight exceptions
- Confirm Doral pickup readiness
- Ships from Miami, FL
- Check this product's warranty terms
Need volume pricing?
Typical applications
- Joining LED strip runs around corners or obstacles
- Cabinet and shelf lighting installations
- Cove and coffer lighting connections
- Retail display strip lighting extensions
- Under-counter strip lighting continuations

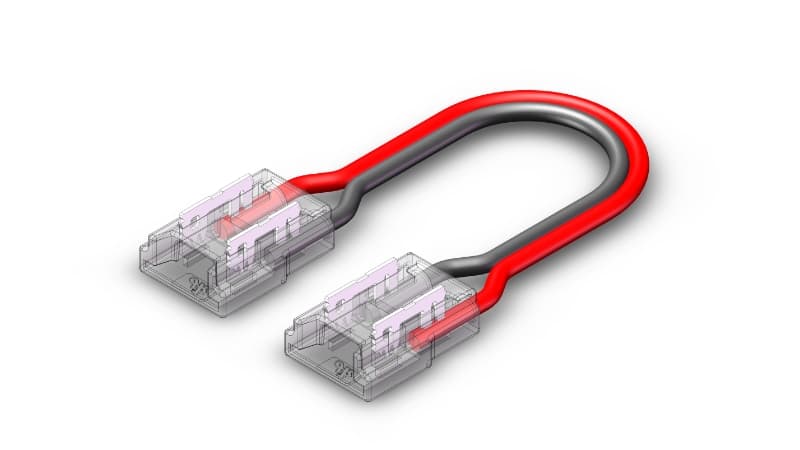

This is a strip-to-strip transparent connector designed to join two sections of 2-pin 10mm SMD or COB LED strip light. A 15 cm wire runs between the connector ends, allowing a gap between strip sections during installation. The connector is rated for a maximum current of 6A and is intended for use with IP20 strip products, suiting indoor, non-wet-location runs. It is supplied in a 5-piece bag for stocking multiple connection points across a job.
| Optical | |
|---|---|
| LED Chip Type | SMD & COB |
| Mechanical | |
| Strip Width | 10 mm(0.39 in) |
| Electrical | |
|---|---|
| Maximum Current | 6 A |
| Wire Length | 5.9 in |
| Environmental | |
| IP rating | IP20 |
Full manufacturer specifications, dimensions and wiring detail.
