M-HRN-5050-60-RGB

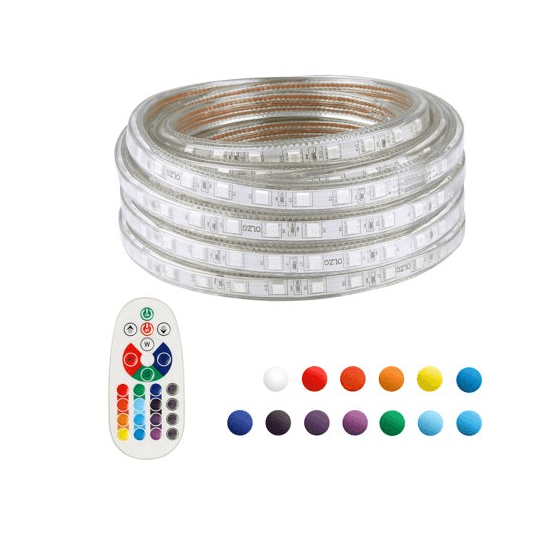

LED Rope Light, 5050 SMD RGB, 60 LEDs/m, 110-130 V AC Line Voltage, IP67, 50 m Roll
Out of stock right now. Ask us for the next delivery date.
Shipping options and charges are confirmed at checkout. Freight quotes are shown separately. Contact the showroom to confirm branch stock before visiting.
- 10W
- IP67
- 5050 SMD emitters at 60 LEDs per meter on 1.67 cm spacing
- Direct 110-130 V AC operation with no external driver
- IP67 waterproof construction for damp and outdoor runs
- ETL listed under control number 5007969
- 50 m maximum connectable run from a single plug cord
- Rated 50,000 hour LED life with a two-year warranty
At a glance
- Operating Voltage
- 110–130 V
- LED Density
- 60 LEDs/m
- Length
- 50 m
- Minimum Cut Length
- 20 mm
- Product Dimensions
- H7mmxW14mm
- Luminous flux
- 16 lm
- ETL Listed
- UL Listed
- Check delivery costs and freight exceptions
- Confirm Doral pickup readiness
- Ships from Miami, FL
- Check this product's warranty terms
Need volume pricing?
Typical applications
- Building perimeter and roofline outlining
- Interior cove and soffit lighting
- Sign cabinet and channel letter accent
- Parking structure and walkway edge lighting
- Retail display and architectural feature runs
LUMIPRO 5050 Series rope light is a line-voltage RGB linear luminaire supplied on 50 m (164 ft) rolls with a 10 mm pin width. It operates directly on 110-130 V AC without a separate driver and mounts with clips or in channel for cove, perimeter and outline lighting. The extrusion measures H7 mm x W14 mm and carries 5050 SMD chips at 60 per meter on 1.67 cm centers, each rated 0.2 W and 16 lm, for 2-10 W per meter and a 120-140 degree beam spread. Rated LED life is 50,000 hours, the assembly is IP67 waterproof, and the operating range is -30 C to 40 C. The run is cuttable, connectable and dimmable. ETL listed under control number 5007969. Two-year warranty.
| Optical | |
|---|---|
| Luminous flux | 16 lm |
| Beam angle | 140° |
| LED Chip Type | 5050 |
| LED Density | 60 LEDs/m |
| LED Lifetime | 50,000 h |
| Color | RGB |
| Environmental | |
| IP rating | IP67 |
| Environmental Rating | Waterproof |
| Ambient Operating Temperature | -30 °C(-22 °F) |
| Ordering | |
| Warranty | 2 y |
| Electrical | |
|---|---|
| Operating Voltage | 110–130 V |
| Wattage | 10 W |
| Mechanical | |
| Product Dimensions | H7mmxW14mm |
| Length | 50 m(164.0 ft) |
| Minimum Cut Length | 20 mm(0.79 in) |
| Finish | White |
| Material | PCB |
| Mounting | Clip or channel |
| Compliance | |
| Certifications | ETL |
| UL File Number | 5007969 |
Full manufacturer specifications, dimensions and wiring detail.
Download datasheetCustomer reviews
