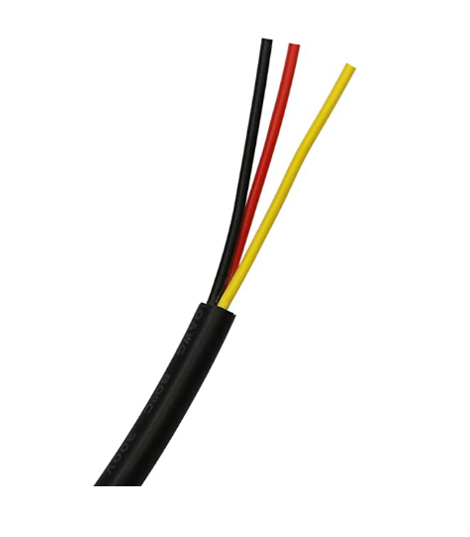

3-Conductor Cable, 18 AWG Tinned Copper, PVC Jacket, 300 V Rated, Black

Three-conductor 18 AWG cable with a black PVC jacket, supplied on rolls for indoor wiring runs in signage, LED lighting assemblies, control enclosures and general electrical distribution in dry locations. Each conductor is stranded tinned copper in a 34/0.16 mm construction with a 0.68 mm cross-sectional area and a 1.08 mm stranded diameter. PVC primary insulation averages 0.365 mm and is color-coded red, black and yellow. The PVC jacket averages 0.91 mm for an overall cable diameter of 5.7 mm. The cable is rated 300 V at a conductor temperature of 80 C, and is non-waterproof with an IP20 rating. RoHS and CE compliant. Backed by a 1-year warranty.
