CA3J-18-100

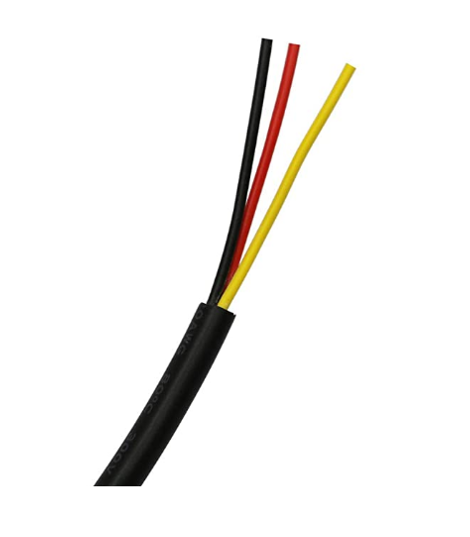

A three-conductor 18 AWG hookup cable supplied on a 100 ft (30.5 m) roll, built to the UL2464 reference standard for interconnect and low-voltage power runs inside enclosures, sign cabinets, fixtures and control panels. Conductors are tinned copper stranded 34/0.16 mm for a 0.68 mm² cross section, individually PVC insulated in red, black and yellow to a 1.8 mm insulation diameter. The black PVC jacket averages 0.91 mm thick and brings the overall cable diameter to 5.7 mm. Rated 300 V at 80 °C, with an IP20 non-waterproof construction for dry indoor routing. RoHS compliant. Covered by a 1-year warranty.
| Optical | |
|---|---|
| LED Lifetime | 50,000 h |
| Mechanical | |
| Product Dimensions | 5.7 mm overall diameter |
| Length | 30.5 m(100.1 ft) |
| Finish | Black |
| Material | Tinned copper conductor with PVC insulation and PVC jacket |
| Ordering | |
| Warranty | 1 y |
| Electrical | |
|---|---|
| Operating Voltage | 300 V |
| Wire Gauge | 18 AWG |
| Environmental | |
| IP rating | IP20 |
| Environmental Rating | Non-Waterproof |
| Ambient Operating Temperature | 80 °C(176 °F) |
Full manufacturer specifications, dimensions and wiring detail.
