A-SM6-R15W-5CCT-D-ETL

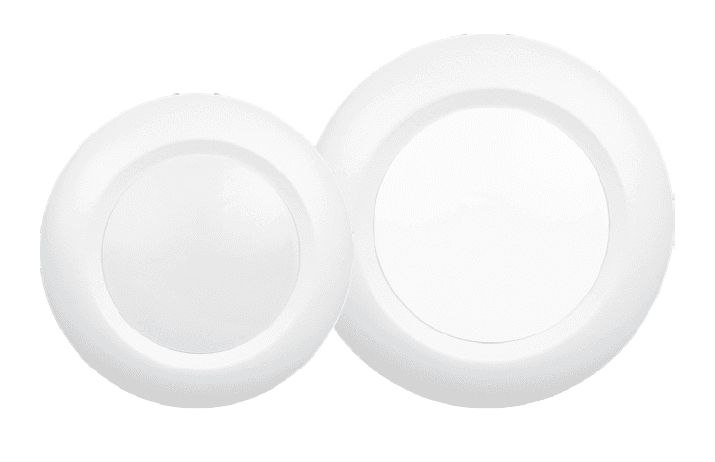

This 6-inch surface mount LED downlight is a DOB disk fixture designed for residential and light commercial ceiling installations, including wet or damp locations such as covered porches and bathrooms. The white finish disk mounts flush to walls or poles and delivers 980 lumens at 15W from a 120VAC input. Field-selectable color temperature (2700K/3000K/3500K/4000K/5000K) allows a single SKU to serve multiple lighting scenes, with CRI80 color rendering and a 100° beam angle for broad, even coverage. The fixture supports Triac and 0-10V dimming and is rated for continuous operation between -20°C and 40°C ambient, with a 63 lm/W efficacy and 50,000-hour LED lifetime. ETL certified for wet location use, the fixture carries an IP65 environmental rating and a 5-year manufacturer warranty.
| Optical | |
|---|---|
| Luminous flux | 980 lm |
| Efficacy | 63 lm/W |
| CCT | 2,700K / 3,000K / 3,500K / 4,000K / 5,000K |
| Selectable CCT | Yes |
| CRI | 80 |
| Beam angle | 100° |
| LED Chip Type | DOB |
| LED Lifetime | 50,000 h |
| Environmental | |
| IP rating | IP65 |
| Environmental Rating | Suitable for Wet/Damp Locations |
| Ambient Operating Temperature | -20–40 °C(-4–104 °F) |
| Electrical | |
|---|---|
| Operating Voltage | 120 V |
| Wattage | 15 W |
| Power Factor | 0.9 |
| Dimmable | Yes |
| Dimmer Type | Triac + 0-10V |
| Mechanical | |
| Product Dimensions | 188x28 mm |
| Finish | White |
| Mounting | Wall/Pole Mount |
| Compliance | |
| Certifications | ETL |
| Ordering | |
| Warranty | 5 y |
Full manufacturer specifications, dimensions and wiring detail.
Download datasheetNo reviews yet. Be the first to review this product.
