A-SM4-R10W-4K-D

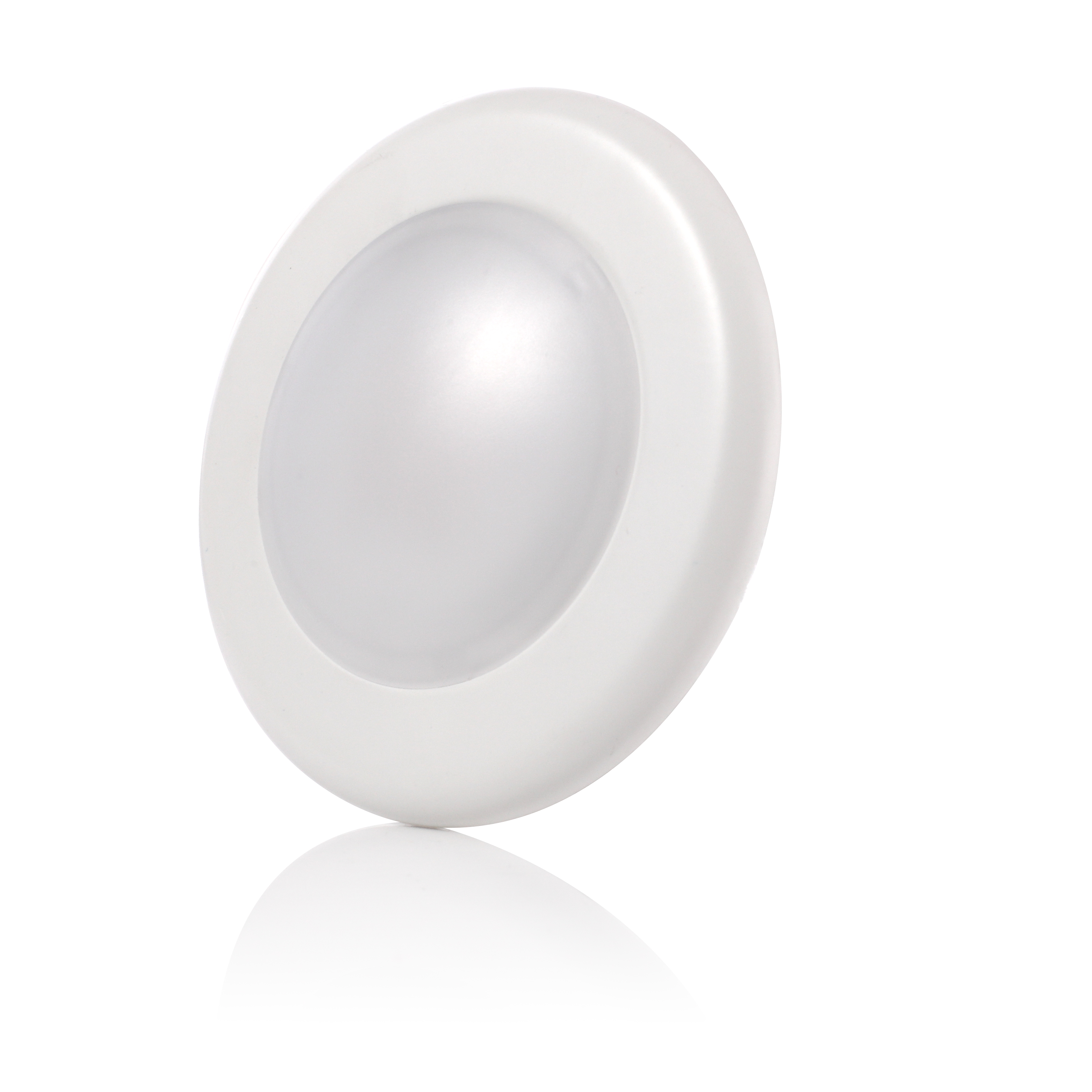

The LUMIPRO 4-inch SM Series surface mount downlight is a DOB (Driver-on-Board) fixture designed for residential and light commercial ceiling applications where a low-profile, direct-wire solution is required. The aluminum housing has a white finish suited for standard ceiling installations. The fixture operates at 120VAC and draws 10W, delivering 650 lumens at 4000K (neutral white) with a 140-degree beam angle. CRI is rated at 90, and the unit supports Triac dimming for compatibility with standard phase-cut dimmers. Rated LED lifetime is 50,000 hours. This product is certified ETL, Energy Star, FCC and LM80, and is covered by a 7-year warranty.
| Optical | |
|---|---|
| Luminous flux | 650 lm |
| Efficacy | 65 lm/W |
| CCT | 4,000 K |
| CRI | 90 |
| Beam angle | 140° |
| LED Lifetime | 50,000 h |
| Compliance | |
| Certifications | ETL,Energy Star,FCC,LM79,LM80 |
| Ordering | |
| Warranty | 7 y |
| Electrical | |
|---|---|
| Operating Voltage | 120 V |
| Wattage | 10 W |
| Dimmable | Yes |
| Dimmer Type | Triac |
| Mechanical | |
| Product Dimensions | 6.25 × 1.5 × 6 ft |
| Finish | White |
| Material | Aluminum |
| Mounting | Surface Mount |
| Weight | 0.4 lb |
Full manufacturer specifications, dimensions and wiring detail.
Download datasheetNo reviews yet. Be the first to review this product.
