A-GBF4-R10-5CCT-D-ETL
4 in. Floating Gimbal COB Recessed Downlight, 10 W, 950 lm, 5CCT Selectable, Triac Dimmable
- 10W
Ordered by 1 customer in the last 24 months
- 950 lm at 10 W for 95 lm/W system efficacy
- Field-selectable 2700 K, 3000 K, 3500 K, 4000 K and 5000 K output
- Triac dimming from 10 to 100 percent on 100-130 V AC
- Die cast aluminum alloy body with 360 degree rotation and 90 degree tilt
- Type IC rated and air tight, junction box included
- ETL listed with 50,000-hour rated lamp life
At a glance
- Color Temperature
- 2,700K / 3,000K / 3,500K / 4,000K / 5,000K
- CRI
- 80
- Efficacy
- 95 lm/W
- Beam Angle
- 36°
- Dimmable
- Yes
- Luminous Flux
- 950 lm
- ETL Listed
- Free shipping on orders over $300
- Same-day pickup in Doral
- Ships from Miami, FL
- Manufacturer warranty included
Need volume pricing? Ask about wholesale
Typical applications
- Insulated residential ceilings
- Retail accent lighting
- Hotel guest rooms and corridors
- Office and lobby general lighting
- Damp-location covered entries

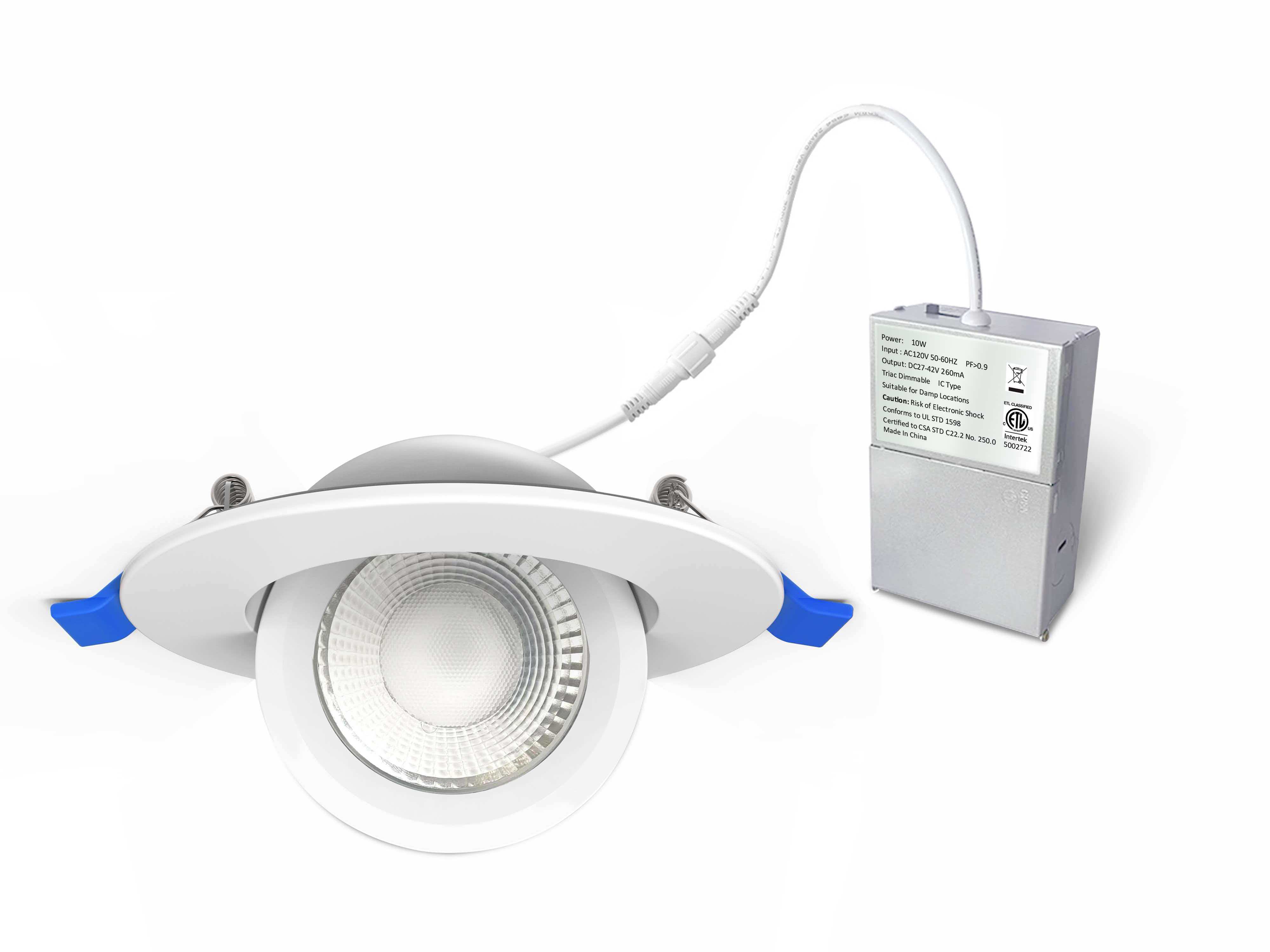

The LUMIPRO 4 in. floating gimbal downlight is a die cast aluminum alloy COB recessed fixture with an included junction box and integral external driver. Type IC and air tight construction allows direct installation in insulated ceilings without a separate housing, and the fixture is suitable for damp locations. The gimbal provides 360 degrees of horizontal rotation and 90 degrees of vertical tilt for accent and wall-wash aiming. Output is 950 lumens at 10 W, giving 95 lm/W, with a 36-degree beam, CRI of 80 and a field-selectable color temperature of 2700 K, 3000 K, 3500 K, 4000 K or 5000 K. Input is 100-130 V AC at 50/60 Hz with a power factor above 0.9, Triac dimming from 10 to 100 percent, and rated lamp life of 50,000 hours to 70 percent output. Cutout size is 102 mm. ETL listed. Five-year warranty.
| Optical | |
|---|---|
| Luminous flux | 950 lm |
| Efficacy | 95 lm/W |
| CCT | 2,700K / 3,000K / 3,500K / 4,000K / 5,000K |
| Selectable CCT | Yes |
| CRI | 80 |
| Beam angle | 36° |
| LED Chip Type | COB |
| LED Lifetime | 50,000 h |
| Environmental | |
| IP rating | IP20 |
| Environmental Rating | Non-Waterproof |
| Ordering | |
| Warranty | 5 y |
| Electrical | |
|---|---|
| Operating Voltage | 100–130 V |
| Wattage | 10 W |
| Power Factor | 0.9 |
| Dimmable | Yes |
| Dimmer Type | Triac + 0-10V |
| Mechanical | |
| Product Dimensions | R125x35.5 mm |
| Finish | White |
| Material | Die Cast Aluminum Alloy |
| Mounting | Wall/Pole Mount |
| Compliance | |
| Certifications | ETL |
Full manufacturer specifications, dimensions and wiring detail.
Download datasheetCustomer reviews
