9-PB2x4-PS-5CCT-EM

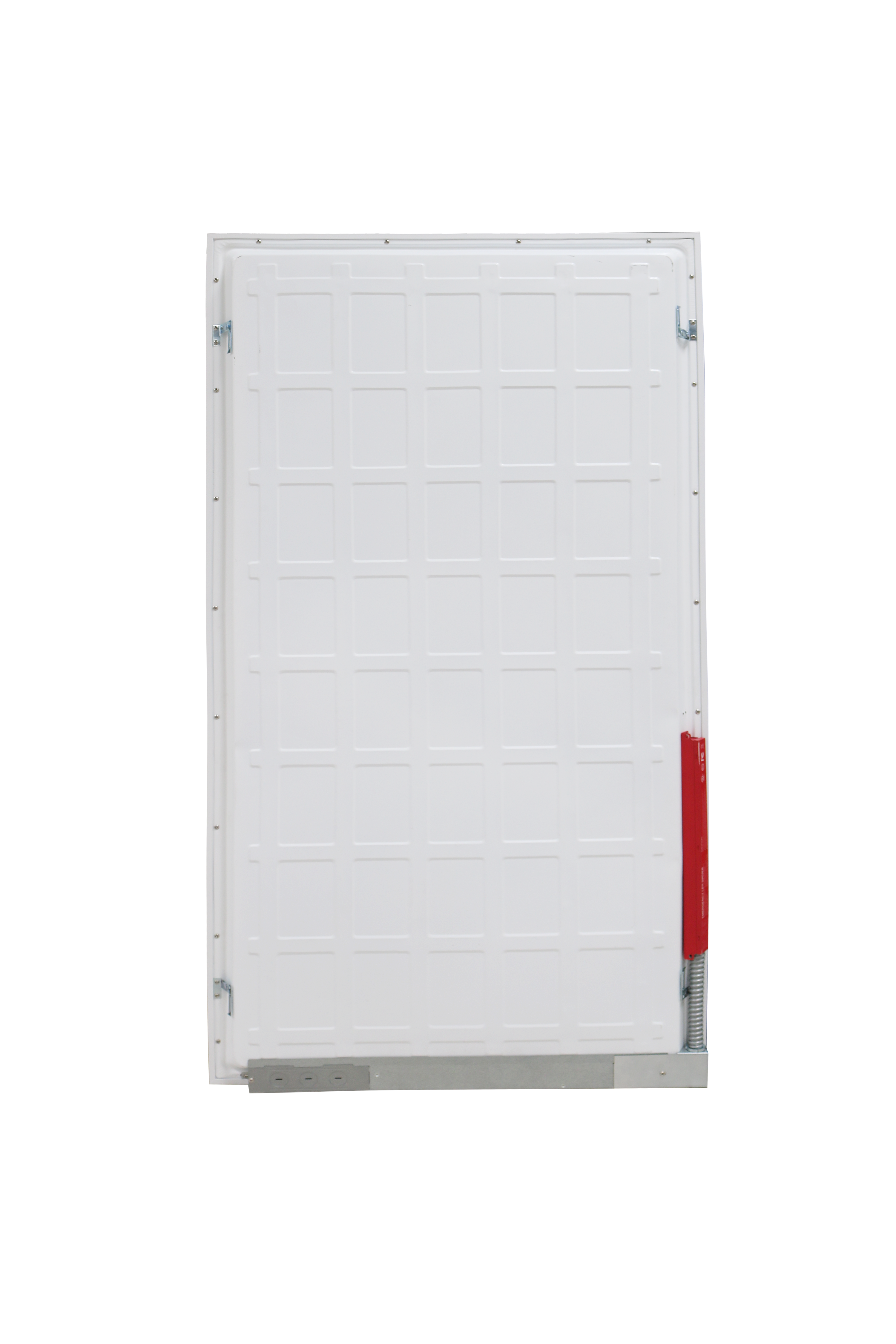

LED Flat Panel Light with Emergency Driver, 2'x4', 30-50 W Selectable, 5CCT, 0-10V Dimming
- 40W
Ordered by 3 customers in the last 24 months
- Field-selectable output from 30 W to 50 W via DIP switch
- Five CCT settings spanning 3000 K to 6000 K at CRI 80
- 125 lm/W efficacy with power factor above 0.90
- Isolated driver with 0-10V dimming on 120-277 VAC input
- Emergency driver with self-diagnostic 30-second and 90-minute tests
- Aluminum housing, white finish, 603x1213x37 mm
At a glance
- Color Temperature
- 3,000K / 3,500K / 4,000K / 5,000K / 6,000K
- CRI
- 80
- Efficacy
- 125 lm/W
- Beam Angle
- 120°
- Dimmable
- Yes
- Luminous Flux
- 125 lm
- UL Listed
- DesignLights Consortium
- ENERGY STAR
- Free shipping on orders over $300
- Same-day pickup in Doral
- Ships from Miami, FL
- Manufacturer warranty included
Need volume pricing? Ask about wholesale
Typical applications
- Office lay-in grid ceilings
- School classrooms and corridors
- Healthcare egress corridors
- Retail sales floors
- Municipal and institutional buildings
The LUMIPRO PB Series is a 2'x4' backlit LED flat panel with an integral emergency driver, sized 603x1213x37 mm for lay-in grid ceilings in offices, schools, healthcare corridors and retail spaces where code-required egress illumination is part of the lighting design. Wattage is field-selectable from 30 W to 50 W and correlated color temperature is switchable across 3000 K, 3500 K, 4000 K, 5000 K and 6000 K. The isolated driver delivers 125 lm/W at CRI 80 with a power factor above 0.90, operates on 120-277 VAC, and supports 0-10V dimming. Beam angle is 120 degrees, rated LED life is 50,000 hours, and the aluminum housing carries a white finish with an IP20, non-waterproof rating. UL listed with a 5-year warranty.
| Optical | |
|---|---|
| Luminous flux | 125 lm |
| Efficacy | 125 lm/W |
| CCT | 3,000K / 3,500K / 4,000K / 5,000K / 6,000K |
| Selectable CCT | Yes |
| CRI | 80 |
| Beam angle | 120° |
| LED Chip Type | SMD2835 |
| LED Lifetime | 50,000 h |
| Color | White |
| Environmental | |
| IP rating | IP20 |
| Environmental Rating | Non-Waterproof |
| Ambient Operating Temperature | -10–45 °C(14–113 °F) |
| Ordering | |
| Warranty | 5 y |
| Electrical | |
|---|---|
| Operating Voltage | 120–277 V |
| Wattage | 40 W |
| Power Factor | 0.95 |
| Dimmable | Yes |
| Dimmer Type | 0 - 10V |
| Driver | Isolated Driver |
| Mechanical | |
| Product Dimensions | 603x1213x37 mm |
| Finish | White |
| Material | Aluminum |
| Mounting | Wall/Pole Mount |
| Weight | 1.54 lb |
| Compliance | |
| Certifications | UL |
Full manufacturer specifications, dimensions and wiring detail.
