9-CL9W-1BX-12V
Shipping options and charges are confirmed at checkout. Freight quotes are shown separately. Contact the showroom to confirm branch stock before visiting.

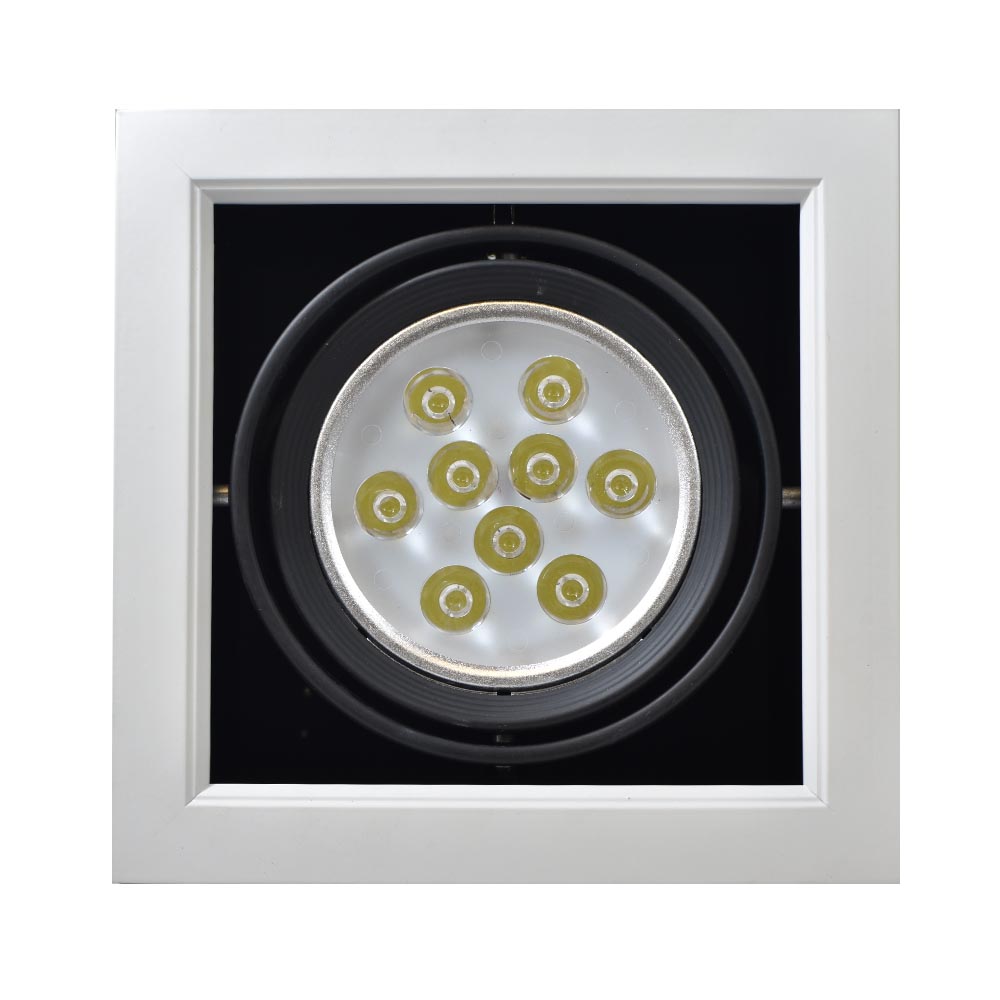

The 9W LED ceiling spot light lamp is a compact recessed luminaire suited for commercial and residential applications requiring focused, directional illumination. Its aluminum housing provides structural durability while maintaining a low-profile appearance compatible with standard ceiling fixtures. The lamp operates at 12V DC and consumes 9W, delivering 810 lumens at a 6500K correlated color temperature for a cool, daylight-range output with a 45° beam angle and 90 lm/W efficacy. The aluminum construction supports heat dissipation during continuous operation, and the unit is rated for ambient temperatures from -25 to 45°C. The fixture carries CE and RoHS certification and is backed by a 1-year warranty.
| Optical | |
|---|---|
| Luminous flux | 810 lm |
| Efficacy | 90 lm/W |
| CCT | 6,500 K |
| Beam angle | 45° |
| LED Lifetime | 50,000 h |
| Color | White |
| Compliance | |
| Certifications | CE, RoHS |
| Electrical | |
|---|---|
| Operating Voltage | 12 V |
| Wattage | 9 W |
| Mechanical | |
| Finish | White |
| Material | Aluminum |
| Environmental | |
| Ambient Operating Temperature | -25–45 °C(-13–113 °F) |
| Ordering | |
| Warranty | 1 y |
Full manufacturer specifications, dimensions and wiring detail.
