7-RSL40-12V-45W

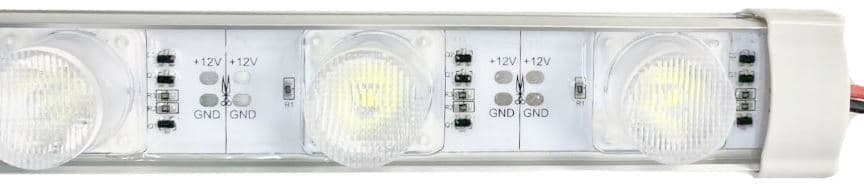

40 in. LED Light Bar, 12V DC, 45W, 8000K, 10×30° Lens, SMD3535
- 12V
- 45W
- Operates on 12V DC, drawing 45W of power
- Produces 3,240 lumens per bar for high-output illumination
- SMD3535 LED chips in an 18-chip configuration
- 10×30° lens delivers a narrow, focused beam pattern
- Color temperature rated at 8000K for cool white light
- Rated for 50,000 hours of LED lifetime
At a glance
- Color Temperature
- 8,000 K
- Efficacy
- 72 lm/W
- Beam Angle
- 30°
- Luminous Flux
- 3,240 lm
- LED Chip Type
- SMD3535
- LEDs per Segment
- 18
- Free shipping on orders over $300
- Same-day pickup in Doral
- Ships from Miami, FL
- Manufacturer warranty included
Need volume pricing?
Typical applications
- Vehicle-mounted lighting
- Outdoor area illumination
- Large-space lighting
- Sign and display lighting
The 7-RSL40-12V-45W is a 40 in. LED light bar designed for high-output, focused illumination in vehicle, outdoor, and large-space applications. Its compact profile—40 in. long by 1 in. wide by 5/8 in. tall—allows for straightforward installation in space-constrained environments. The unit operates on 12V DC and draws 45W, producing 3,240 lumens per bar from SMD3535 LED chips arranged in an 18-chip configuration. A 10×30° lens provides a narrow, directed beam pattern suited to long-range or spot-lighting tasks. Color temperature is rated at 8000K, delivering a crisp, cool white output. The LED lifetime is rated at 50,000 hours, and the unit carries a 1-year warranty.
| Optical | |
|---|---|
| Luminous flux | 3,240 lm |
| Efficacy | 72 lm/W |
| CCT | 8,000 K |
| Beam angle | 30° |
| LED Chip Type | SMD3535 |
| LEDs per Segment | 18 |
| LED Lifetime | 50,000 h |
| Electrical | |
|---|---|
| Operating Voltage | 12 V |
| Wattage | 45 W |
| Mechanical | |
| Product Dimensions | 40 in x 1 in x 0.625 in |
| Ordering | |
| Warranty | 1 y |
Full manufacturer specifications, dimensions and wiring detail.
