7-RSL10-12V-6W
Rigid LED Sign Module 6W 12V DC 6500K Narrow Beam, 450lm
- 12V
- 6W
- Three Toshiba SMD3525 LEDs producing 450 lumens at 6500K
- Narrow 10x30-degree beam angle with integrated lens
- Operates on 12V DC, drawing 6 watts
- Rated LED lifetime of 50,000 hours
- Compact dimensions of 10 in x 1 in x 5/8 in
- 1-year warranty coverage
At a glance
- Color Temperature
- 6,500 K
- Efficacy
- 75 lm/W
- Beam Angle
- 30°
- Luminous Flux
- 450 lm
- LED Chip Type
- SMD3525
- LEDs per Segment
- 3
- Free shipping on orders over $300
- Same-day pickup in Doral
- Ships from Miami, FL
- Manufacturer warranty included
Need volume pricing? Ask about wholesale
Typical applications
- Sign face illumination
- Display case lighting
- Accent and task lighting
- Indoor and outdoor commercial installations

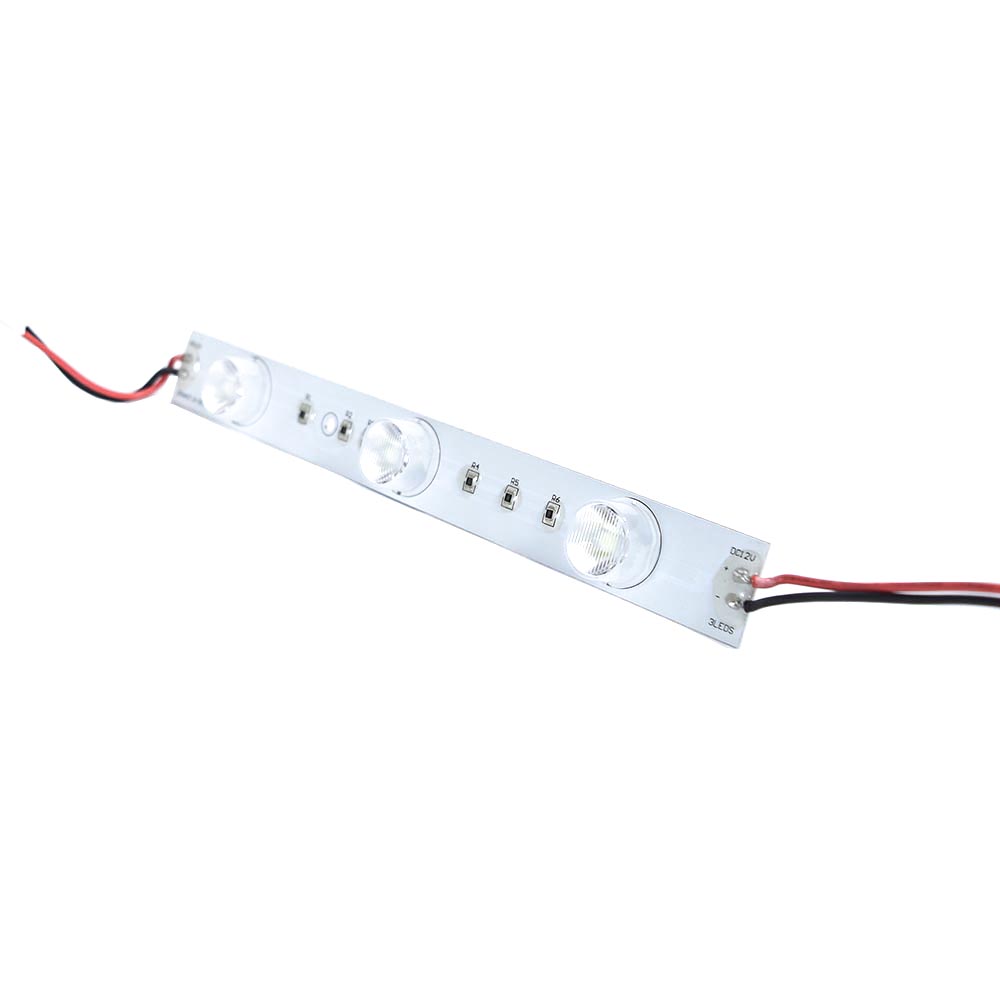

The 7-RSL10-12V-6W is a compact rigid LED sign lighting module built around three Toshiba SMD3525 LEDs, designed for precision spot illumination in commercial and residential installations. The narrow 10x30-degree beam angle and integrated lens make it well suited for accent lighting, display case illumination, and targeted task lighting where controlled light placement is required. Operating on 12V DC, the unit draws 6 watts and delivers 450 lumens of 6500K cool white light, with a rated LED lifetime of 50,000 hours. The module is backed by a 1-year warranty.
| Optical | |
|---|---|
| Luminous flux | 450 lm |
| Efficacy | 75 lm/W |
| CCT | 6,500 K |
| Beam angle | 30° |
| LED Chip Type | SMD3525 |
| LEDs per Segment | 3 |
| LED Lifetime | 50,000 h |
| Electrical | |
|---|---|
| Operating Voltage | 12 V |
| Wattage | 6 W |
| Mechanical | |
| Product Dimensions | 10in x 1in x 5/8in |
| Ordering | |
| Warranty | 1 y |
Full manufacturer specifications, dimensions and wiring detail.
