1-PTS75-CCT

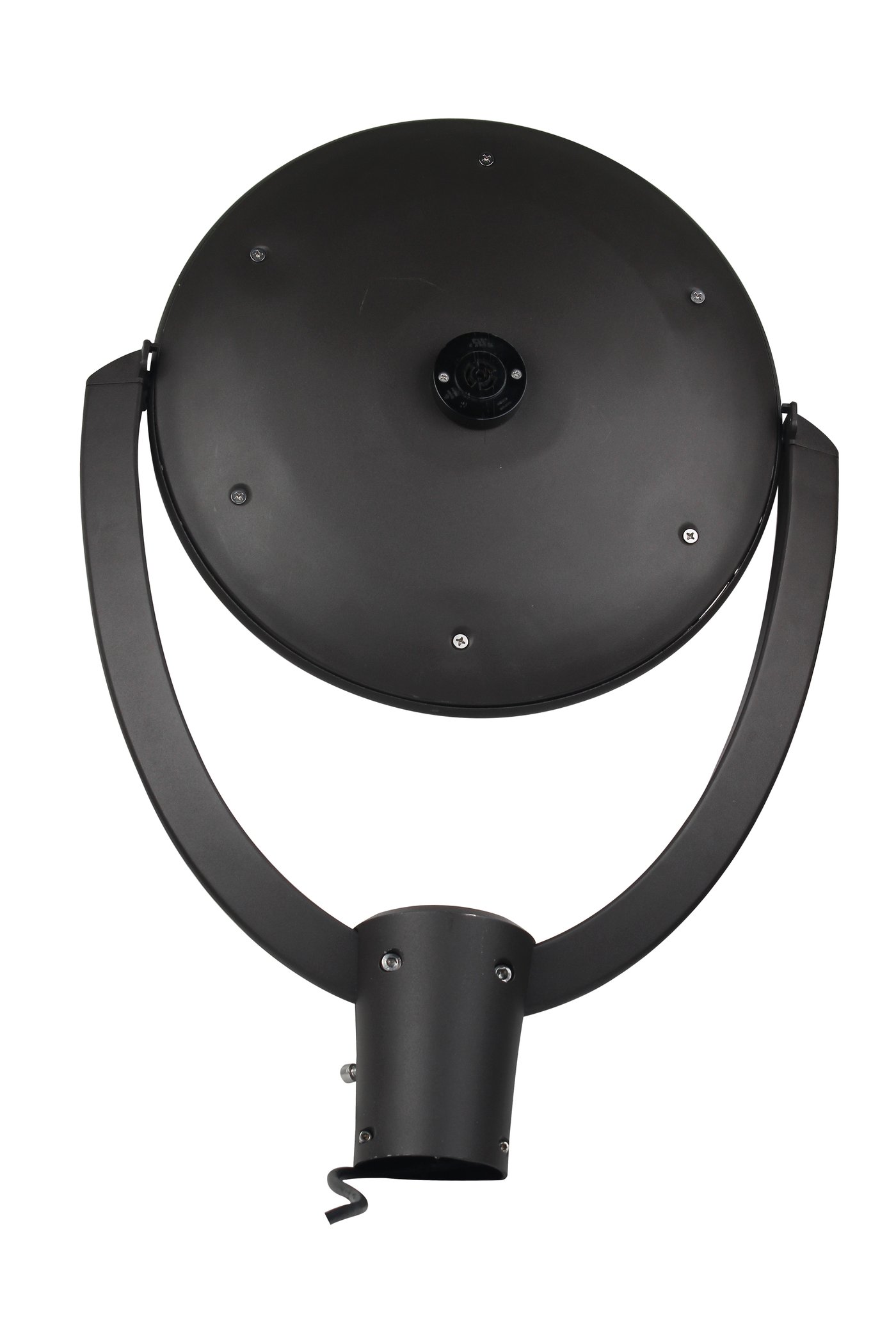

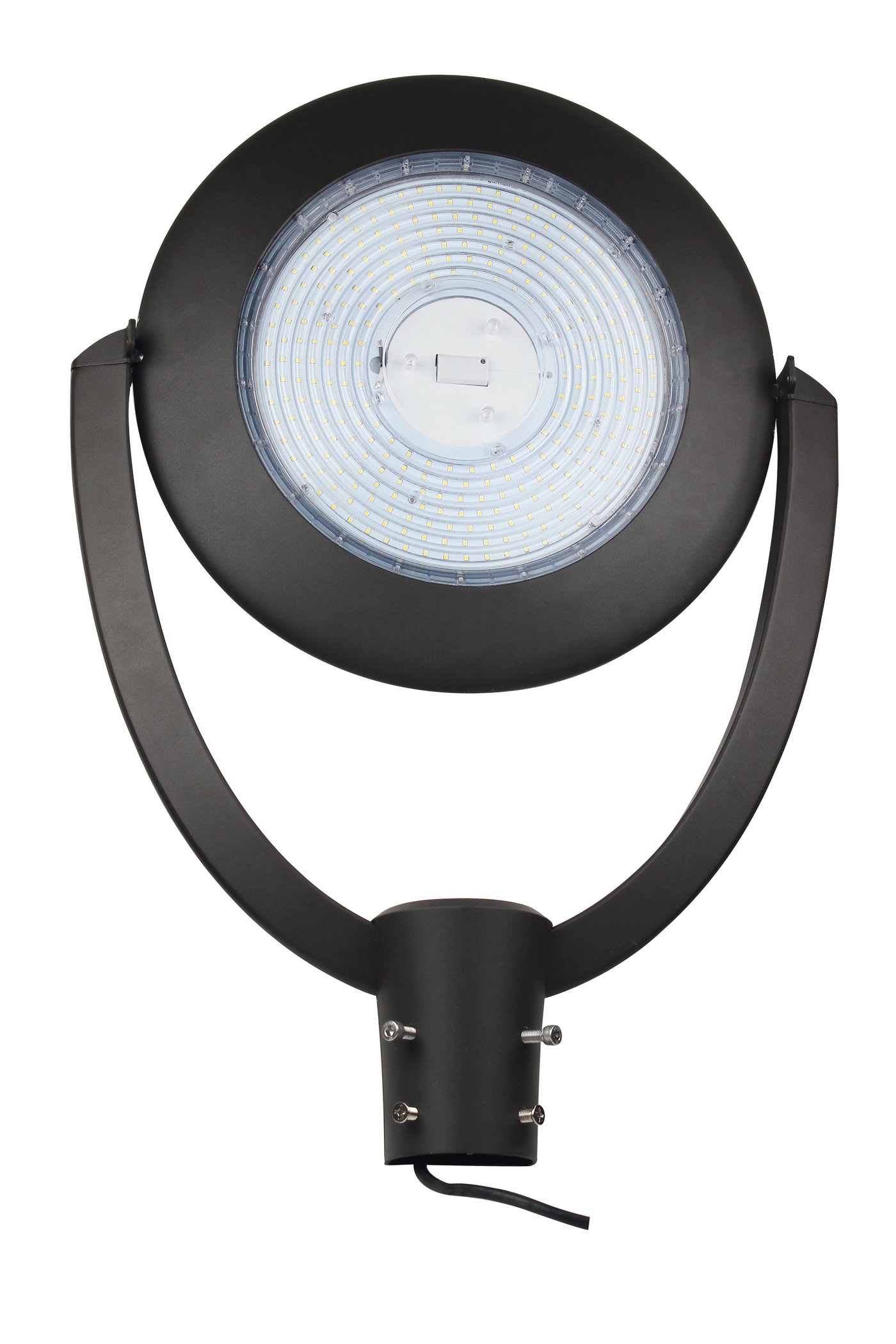

LED Post Top Light, 75W, 9600lm, CCT Adjustable 3K/4K/5K, IP65, DLC
- 75W
- IP65
Ordered by 10 customers in the last 24 months
- Delivers 9,600 lumens at 75W with 128 lm/W efficacy
- Field-adjustable CCT: 3000K, 4000K, or 5000K
- IP65-rated aluminum alloy housing for outdoor exposure
- Operates across -20°C to 40°C ambient temperature range
- Compatible with 1-10V dimming control
- UL and DLC certified with 5-year limited warranty
At a glance
- Color Temperature
- 3,000K / 4,000K / 5,000K
- CRI
- 80
- Efficacy
- 128 lm/W
- Beam Angle
- 120°
- Dimmable
- Yes
- Luminous Flux
- 9,600 lm
- UL Listed
- DesignLights Consortium
- Free shipping on orders over $300
- Same-day pickup in Doral
- Ships from Miami, FL
- Manufacturer warranty included
Need volume pricing? Ask about wholesale
Typical applications
- Parking lot lighting
- Pedestrian walkways
- Streetscape and roadway lighting
- Commercial plazas and courtyards
- Campus and municipal area lighting
The PTS Series LED Post Top Light is designed for outdoor area lighting applications including parking lots, walkways, plazas, and streetscapes. It is compatible with standard post-top mounting configurations and delivers uniform illumination across wide coverage areas. The fixture operates at 75W, producing 9,600 lumens at 128 lm/W efficacy. Three selectable color temperatures (3000K/4000K/5000K) allow field adjustment to suit project requirements. The IP65-rated aluminum alloy housing operates in ambient temperatures from -20°C to 40°C and is built around SMD2835 LED chip technology with a CRI of 80. The fixture supports 1-10V dimming and operates on 120-240V input. The PTS Series carries a 5-year limited warranty and is certified to UL and DLC standards.
| Optical | |
|---|---|
| Luminous flux | 9,600 lm |
| Efficacy | 128 lm/W |
| CCT | 3,000K / 4,000K / 5,000K |
| CRI | 80 |
| Beam angle | 120° |
| LED Chip Type | SMD2835 |
| LED Lifetime | 50,000 h |
| Color | White |
| Compliance | |
| Certifications | UL, cUL, DLC |
| Ordering | |
| Warranty | 5 y |
| Electrical | |
|---|---|
| Operating Voltage | 120–240 V |
| Wattage | 75 W |
| Dimmable | Yes |
| Dimmer Type | 1 - 10V |
| Mechanical | |
| Finish | Black |
| Material | Aluminum alloy |
| Environmental | |
| IP rating | IP65 |
| Ambient Operating Temperature | -20–40 °C(-4–104 °F) |
Full manufacturer specifications, dimensions and wiring detail.
