1-G-PL-BR-PAR36-12V
Shipping options and charges are confirmed at checkout. Freight quotes are shown separately. Contact the showroom to confirm branch stock before visiting.

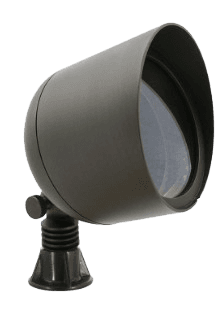

A die-cast brass PAR36 landscape spot light finished in antique bronze, intended for grade-level and planting-bed accent lighting on 12 V low-voltage systems. The body is precision machined from a solid brass casting with an enclosed, water-resistant wireway, and the fixture ships with an 18 AWG lead wire. The lamp is not included. The housing accepts a halogen PAR36 lamp up to 50 W or an LED PAR36 lamp; the rated configuration is 6 W at 2700 K with a 50,000-hour lamp life. A clear flat glass lens with a factory-sealed socket and high-temperature silicone gasket forms a water-tight seal. The machined brass knuckle with solid brass thumb screw provides 270-degree vertical tilt and 360-degree horizontal rotation for aiming. Overall dimensions are 2.3 x 5.3 x 4.6 inches.
| Optical | |
|---|---|
| CCT | 2,700 K |
| LED Lifetime | 50,000 h |
| Mechanical | |
| Product Dimensions | 2.3X5.3X4.6inch |
| Finish | Brass |
| Material | Die-cast brass with clear flat glass lens |
| Mounting | Adjustable brass knuckle, 270-degree tilt, 360-degree rotation |
| Electrical | |
|---|---|
| Operating Voltage | 12 V |
| Wattage | 6 W |
| Wire Gauge | 18 AWG |
Full manufacturer specifications, dimensions and wiring detail.
