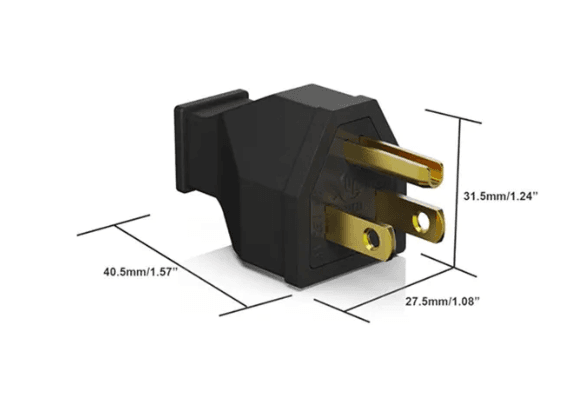

NEMA 5-15P Straight Blade Plug, 15A 125V, 2-Pole 3-Wire, UL Listed

The SO-PLUG-2P-3W-UL is a NEMA 5-15P straight blade grounding plug rated for 15A at 125V, 2-pole 3-wire configuration. It is designed for use in commercial and residential wiring applications where a reliable, field-wireable plug termination is required. The plug is constructed with PA6 nylon covers and base, brass line contacts, and zinc-plated steel terminal screws in a multiple-drive configuration. It accepts 14 AWG wire and is rated for operating temperatures from -40°C to 60°C. Flammability rating is V-2 per UL94, and the dielectric withstand is 2000V per UL498. Terminal identification follows standard color coding: brass for hot, silver for neutral, and green for ground. This plug is listed to UL498 and CSA C22.2 No. 42 under File E355464, and conforms to NEMA WD-6 and ANSI C-73 standards. It carries a 1-year limited warranty.
