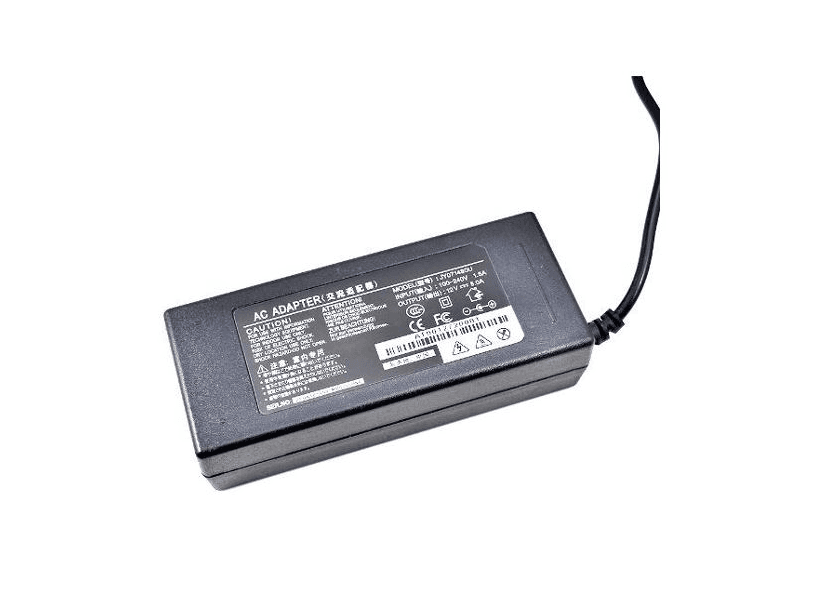

Laptop-Style Indoor Power Supply, 12V DC Output, 96W, 100-264VAC Input, IP20

The P-LT96 is a laptop-style switching power supply that converts AC mains power to regulated 12V DC for LED drivers, lighting controls, and low-voltage electronic equipment in commercial and industrial installations. The aluminum alloy enclosure carries an IP20 rating for indoor, dry-location use. Input is a wide 100-240VAC at 50-60Hz, with a maximum input range of 90-264VAC at 47-63Hz. Output current runs 0-6A across an 11.4-12.6V range with +/-3% voltage tolerance and ripple and noise held to 150mVp-p. Typical efficiency is 86%. Protection includes hiccup-mode overload protection at 110-150% of rated load and auto-recovery short-circuit protection, and a DC OK LED indicates active output. The unit operates from -30 to 50 degrees C at 20-90% RH non-condensing, measures 245 x 76 x 38 mm, and weighs 387g. Supplied with a 1-year warranty.
