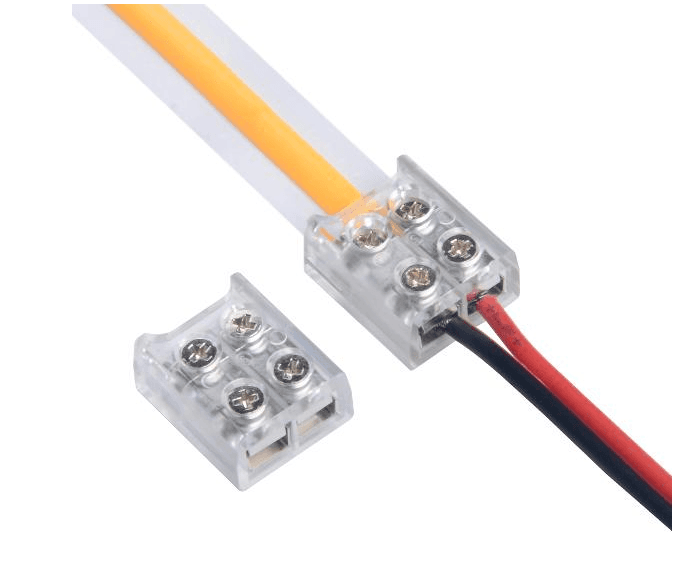

8mm PCB-to-Wire Connector, 2-Pin, IP20, DC 3V–24V, 6A Max (5-Pack)

The MZ-SF8XB-2G is a 2-pin screw connector designed to terminate 8mm flexible or rigid PCB strips to field-wired conductors. One end clamps directly onto the PCB edge; the other accepts stripped wire without requiring a pre-attached lead. Sold in bags of 5, these connectors are suited for low-voltage LED strip installations where a clean, tool-secured termination is preferred over soldering or push-in clips. The connector supports an input voltage range of DC 3V–24V and is rated for a maximum current of 6A, dependent on the wire gauge used. Compatible wire sizes range from 22AWG to 16AWG (0.25–0.8mm²). The IP20 rating indicates suitability for dry, indoor environments only.
