M-Z-CON4D-12mm

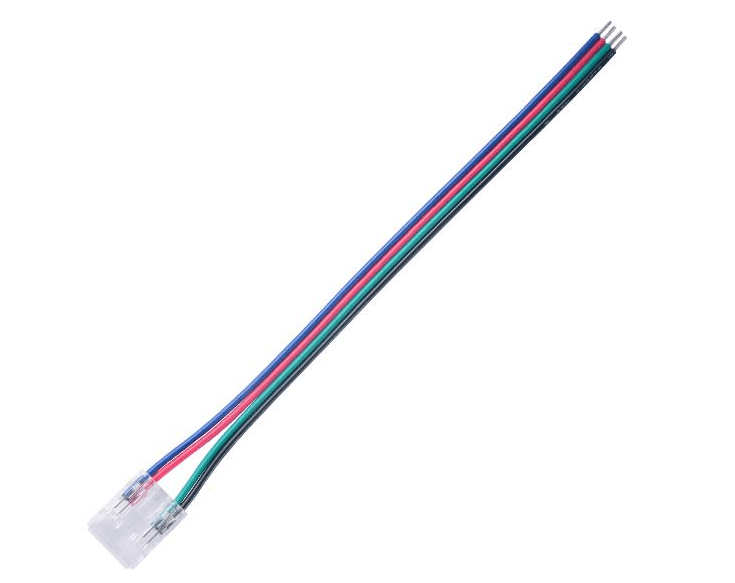

4-Pin COB Strip Connector, IP20, 12mm, Strip to Power, 3.5A (5-Pack)
- 4-pin design for 12mm COB strip to power connections
- 150mm length of 22AWG PVC lead wire
- Four-conductor color coding: black, green, red, blue
- IP20 rated for non-waterproof, indoor use
- Operates from DC 5V to 24V, 3.5A maximum current draw
- UL listed, file number E536464
- Retiro el mismo día en Doral
- Envíos desde Miami, FL
- Garantía del fabricante incluida
The M-Z-CON4D-12mm is a 4-pin solderless connector for 12mm COB LED strip installations, providing a strip-to-power connection in IP20-rated, non-waterproof environments. Each connector includes 150mm of 22AWG PVC cable in a four-conductor configuration (black, green, red, blue), suitable for direct power feed terminations on compatible COB strip systems. Sold in bags of five. The connector operates from DC 5V to 24V with a maximum continuous current of 3.5A per connection, accommodating a range of low-voltage COB strip applications. Rated LED lifetime for the associated strip system is 50,000 hours. The connector is UL listed under file number E536464 and carries a 1-year warranty.
