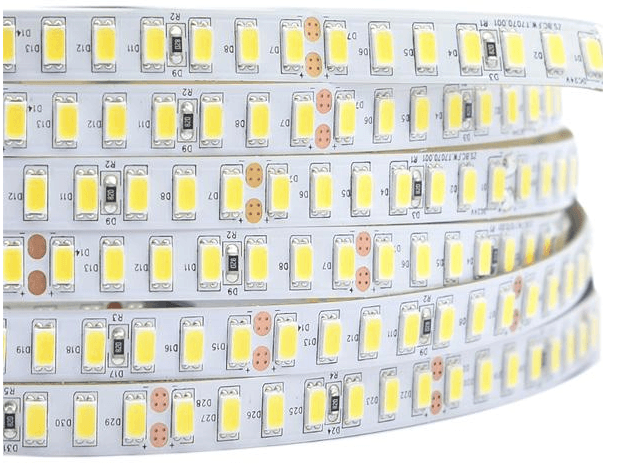

SMD5630 LED Strip Light, 140 LEDs/m, 28.8W/m, 3000K, 24V DC, IP20

The M-56N-140-3K-24V is a single-row SMD5630 LED strip light rated at 140 LEDs/m, designed for commercial and architectural lighting applications requiring high-density, warm-white illumination. Operating at 24V DC, it is suitable for cove lighting, display case illumination, and general-purpose accent or task lighting installations. The strip delivers 28.8W/m with a lumen output of 2,600 lm/m (60 lm per LED) at 3000K, with a CRI of 90 or greater and a 120° beam angle. PCB construction uses 3 oz copper for improved thermal performance and current capacity. Each roll is 5 meters (16.4 ft) and is cuttable every 50mm. The strip is rated IP20 for dry indoor environments and is specified for operating temperatures from -25°C to +45°C. This product carries UL certification and is RoHS compliant. No warranty term is specified in the available source data.
