SKU: CA6-20-500

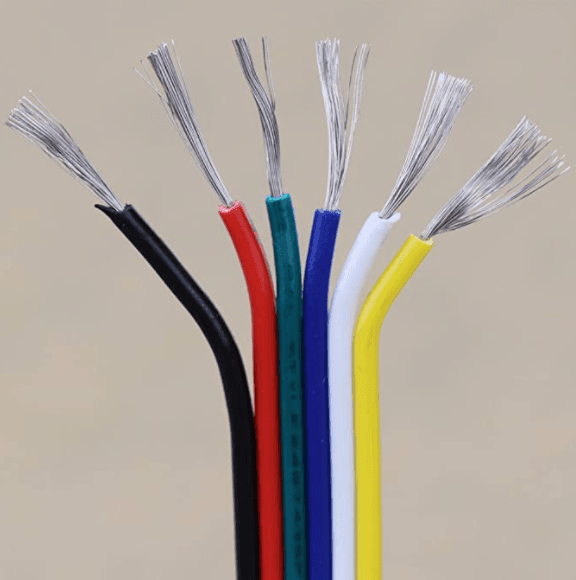

The CA6-20-500 is a 6-conductor, 20 AWG UL1007 hook-up wire sold in 500 ft rolls. Each conductor uses a 21/0.16 tinned stranded copper construction and is insulated with PVC jacket. Available conductor colors are black, green, red, blue, yellow, and white, making it suitable for multi-circuit wiring in control panels, lighting fixtures, and general-purpose electrical assemblies. The wire is rated at 300V and 80°C. Conductor resistance is rated at 50 Ω/km at 20°C, and insulation withstands a dielectric test of 2000V AC per minute. Insulation meets minimum tensile strength of 10.3 MPa with a minimum elongation of 100% prior to aging. This wire is manufactured in compliance with RoHS 1.0 (6-substance) environmental standards. Insulation material is PVC formulated to RoHS requirements.
