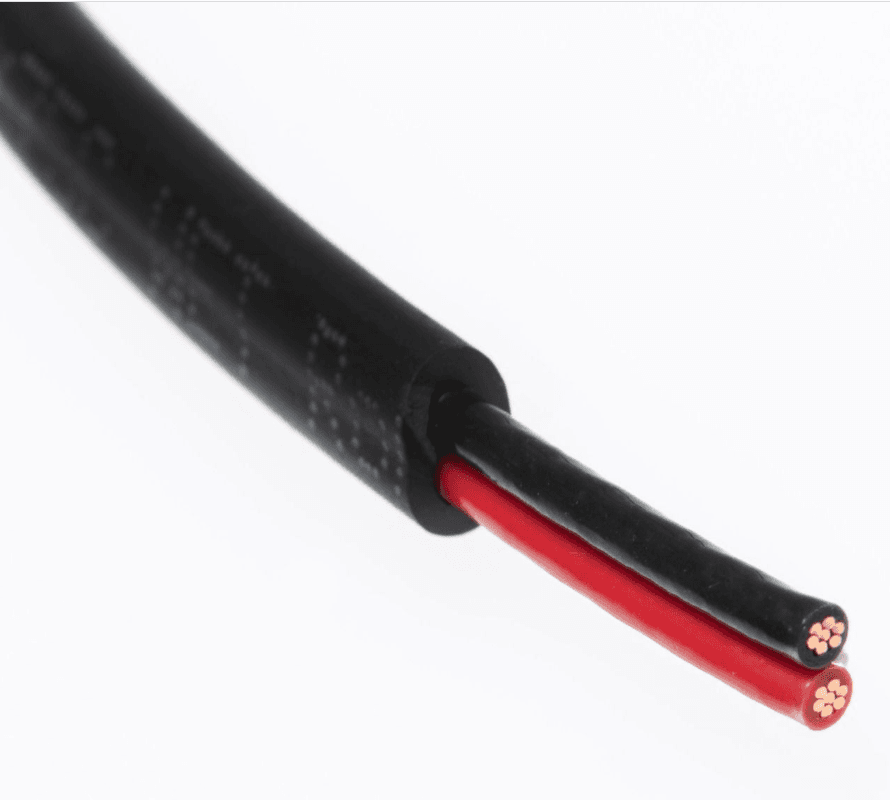

20 AWG 2-Conductor Cable, UL2464 PVC Jacket, 300 V Rated, 984 ft Roll

The CA2J-20 is a 20 AWG, 2-conductor cable with a PVC jacket, sold per foot from a 984 ft (300 m) roll. It is designed for general electrical wiring in commercial and residential applications where a cost-effective, flexible conductor is required. Conductors are 21/0.16 mm tinned copper with a cross-sectional area of 0.42 mm² and red and black PVC insulation at 0.33 mm average wall. The black PVC jacket averages 0.90 mm thick over a 4.8 mm overall diameter, and the cable is rated 300 V at 80 °C. Built to UL2464 style with VW-1 flame rating under file E249743 and compliant with RoHS. Covered by a 1-year warranty.
