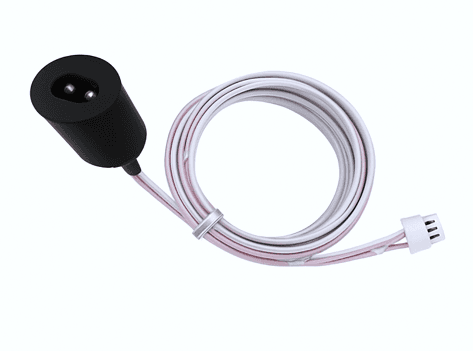

Hand Sweep Cabinet Sensor, 5VDC Input, PWM or Level Output, 8 cm Detection, IP20

A hand sweep sensing head for concealed or surface-mounted installation in cabinets, closets, wine cabinets and similar enclosed lighting assemblies. A pendulum hand motion in front of the head turns the light on or off gradually; holding a hand in place for more than two seconds initiates continuous dimming, with the direction reversing each time the hand is removed and held again. The head is powered by 5VDC and provides either a 5V level signal or a 2000 Hz PWM signal for use with constant-voltage LED dimming power supplies. Detection distance reaches 8 cm across a 15-30 degree sensing angle. The 1.3 x 0.5 in body installs in an 11 mm drilled hole or mounts on the surface using the supplied carabiner bracket and two screws, with a 1-meter terminal wire. Rated IP20 for dry interior use. CE and RoHS compliant, backed by a 5-year warranty.
