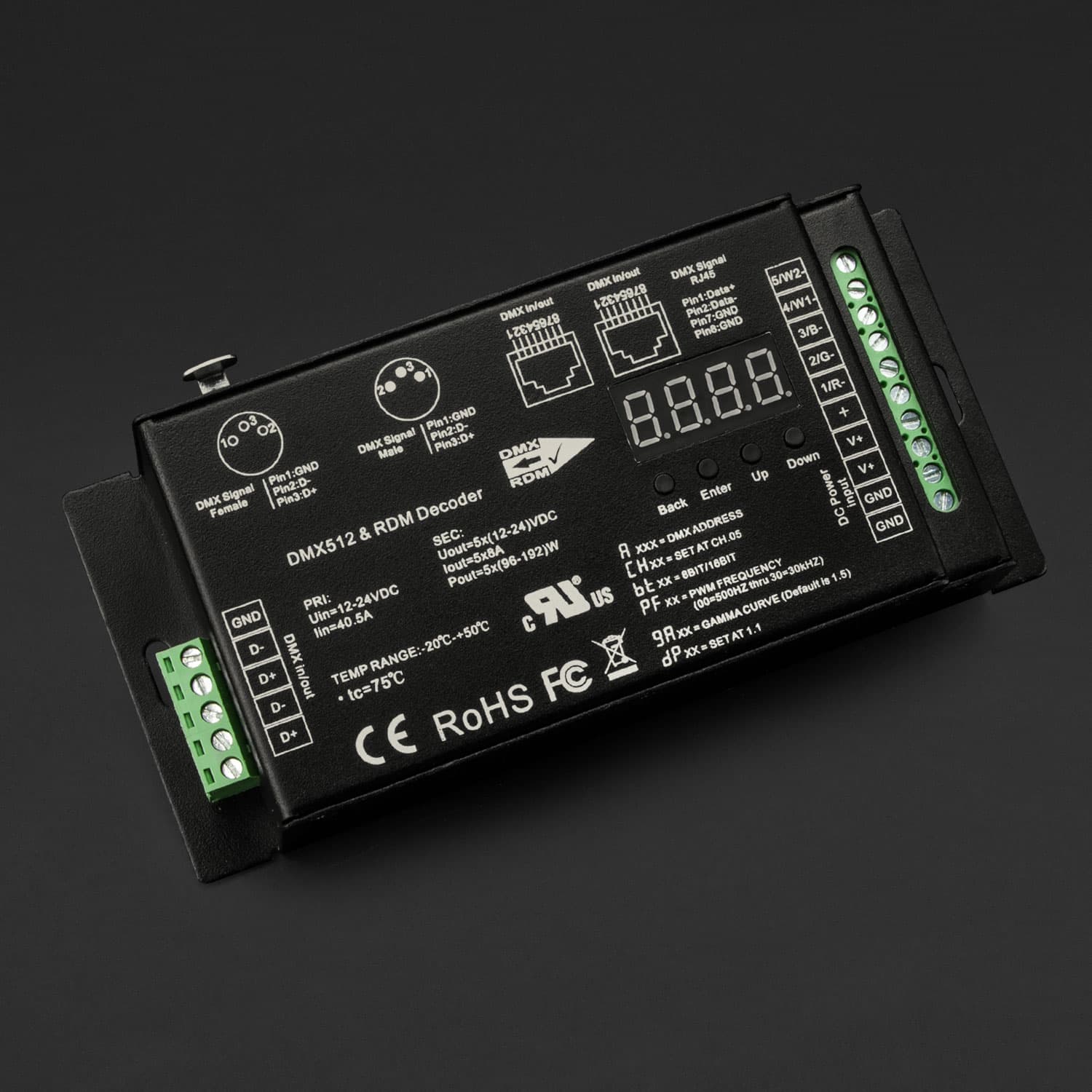

5-Channel Constant Voltage DMX512 RDM Decoder, 12-24 V DC, 5x8 A PWM Output

A five-channel constant voltage DMX512 and RDM PWM decoder for RGB, RGBW and single-color LED loads. Master and decoder modes allow it to run as a stand-alone controller with 31 built-in color programs or as an addressable node on a DMX line, with signal in and out available on RJ45, 3/5-pin XLR and screw terminals. Input is 12-24 V DC with 8 A per channel, or 480-960 W total across five common-anode outputs. PWM resolution is selectable at 8-bit or 16-bit, output frequency is settable from 500 Hz to 35 kHz, and the dimming curve gamma is adjustable from 0.1 to 9.9. The metal housing carries a digital display for DMX address, channel quantity and decoding mode, and the input stage is galvanically isolated. Supplied with a 1-year warranty.
