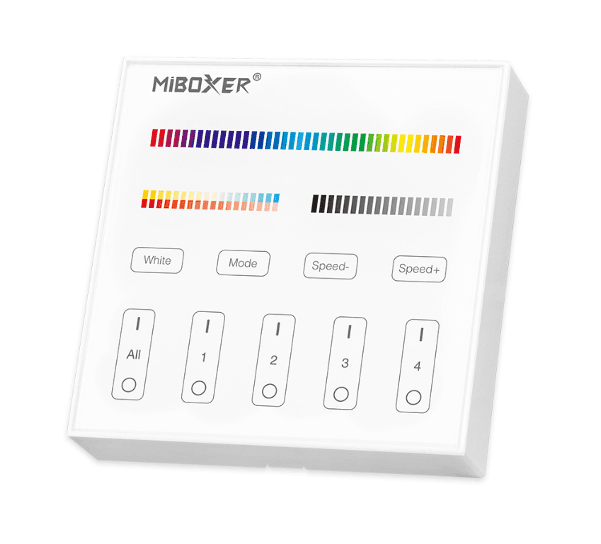

C-5IN1-WP-RGBCCT-4
4-Zone Panel Remote for RGB+CCT Lighting, 2.4 GHz RF, 30 m Control Distance
- 3V
- Four independently addressed zones for RGB+CCT fixtures
- 2.4 GHz RF link using GFSK modulation, 2400-2483.5 MHz
- 30 m rated control distance at 6 dBm transmitting power
- Capacitive touch IC with 16 million color selection
- Two AAA cells at 3 V with 20 µA standby consumption
- Magnetic mounting on an 86 x 86 x 16 mm white panel
- Retiro el mismo día en Doral
- Envíos desde Miami, FL
- Garantía del fabricante incluida
This 4-zone panel remote controls RGB+CCT lighting systems over 2.4 GHz RF wireless transmission and is compatible with MiBoxer/Mi-Light 2.4G series fixtures. Each zone is addressed independently for brightness, color temperature and saturation across 16 million colors. A high-precision capacitive touch IC handles input, and magnetic installation allows surface mounting or handheld use in a 86 x 86 x 16 mm white panel. The remote runs on two AAA cells at 3 V with 20 µA standby consumption and 6 dBm transmitting power. RF output uses GFSK modulation across the 2400-2483.5 MHz band for a rated control distance of 30 m. Working temperature range is -10 to 40 °C, and the enclosure is non-waterproof for interior installation.
