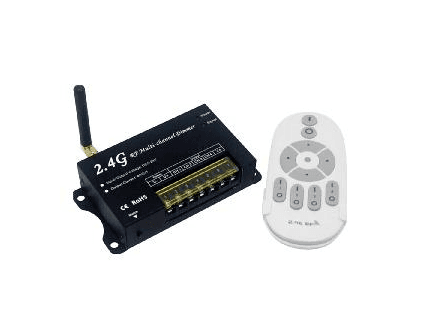

C-4-R192-D
FINAL SALE - Limited 30-day Warranty- Price Drop 30%- 4 channel separate RF remote dimmer 12VD
Las opciones y cargos de envío se confirman al pagar. Las cotizaciones de carga se muestran por separado. Confirma la disponibilidad en la sucursal antes de visitarla.
- 12V
- 192W
- 4 independently controllable channels via RF remote
- 192W total power rating at 12V DC input
- 4A current draw supports multiple lighting zones
- IP20 rated for dry indoor, non-waterproof environments
Aplicaciones típicas
- Commercial accent lighting zones
- Residential architectural lighting control
- Retail display lighting systems
- Multi-zone LED strip installations
The C-4-R192-D is a 4-channel RF remote dimmer for 12V DC low-voltage lighting systems. It provides independent brightness control of up to four separate lighting circuits via wireless RF remote, suitable for commercial and residential accent, display, or architectural lighting installations requiring zone-level control. The unit operates at 12V DC with a total power rating of 192W and a current draw of 4A. Construction is aluminum and plastic with a black and white finish, rated IP20 for dry indoor environments and an ambient operating range of -20 to 40°C. LED lifetime is rated at 50,000 hours. The controller carries CE and RoHS certification and a 30-day limited warranty.
| Eléctrica | |
|---|---|
| Voltaje de operación | 12 V |
| Potencia | 192 W |
| Corriente máxima | 4 A |
| Salida de la fuente | 12VDC |
| Ambiental | |
| Grado IP | IP20 |
| Clasificación ambiental | Non-Waterproof |
| Temperatura ambiente de operación | -20–40 °C(-4–104 °F) |
| Mecánica | |
|---|---|
| Dimensiones | 6 × 7 × 2 in |
| Acabado | Black + White |
| Material | Aluminum + Plastic |
| Peso | 0.8 lb |
| Cumplimiento | |
| Certificaciones | CE, RoHS |
| Pedido | |
| Garantía | 30 días |
Especificaciones completas del fabricante, dimensiones y detalle de conexión.
Descargar ficha técnicaOpiniones de clientes
