SKU: A-E6-S12-3CCT

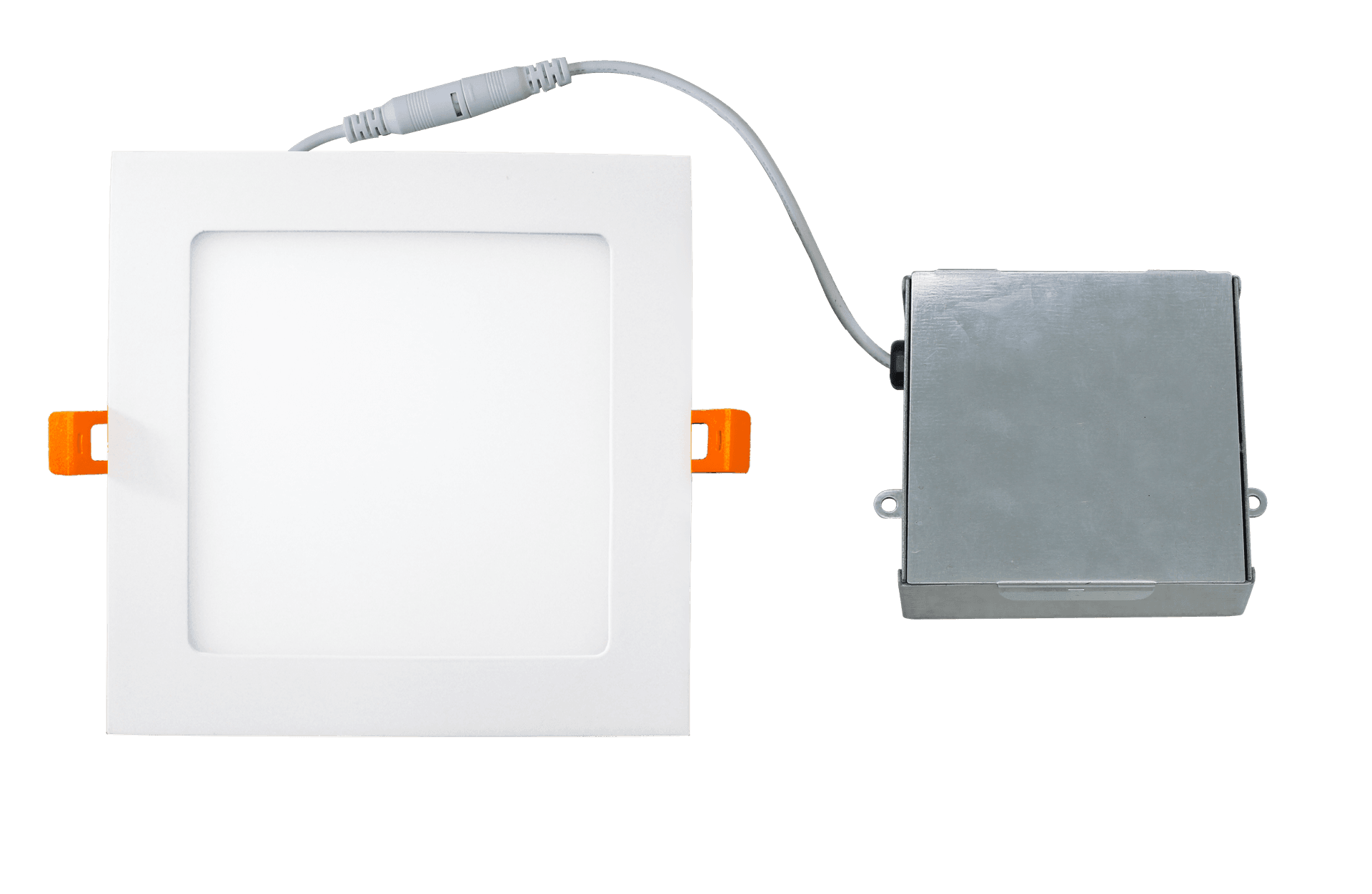

The A-E6-S12-3CCT is a 6-inch square slim LED downlight designed for new construction and retrofit applications requiring a low-profile fixture. Edge-lit and only 0.49 inches thick, it requires no existing recessed housing or junction box, making it suitable for commercial and residential installations including wet locations such as bathrooms, laundry rooms, porches, and garages. The fixture operates at 12W on 120V/60Hz and delivers 870–901 lumens depending on selected color temperature. CCT is field-selectable among 3000K, 4000K, and 5000K via an integrated switch. CRI is 90, beam angle is 120°, and the housing is constructed of aluminum and polystyrene. Rated for wet locations and IC-rated for direct insulation contact, the unit supports Triac dimming from 100% to 10% and carries a rated lifespan of 50,000 hours. Operating temperature range is -4°F to 113°F. The fixture is ETL Listed and ENERGY STAR qualified. A 5-year limited warranty is included.
