Drywall Trimless Aluminum LED Profile, 26mm x 76mm, 6063-T5, 6.6 ft

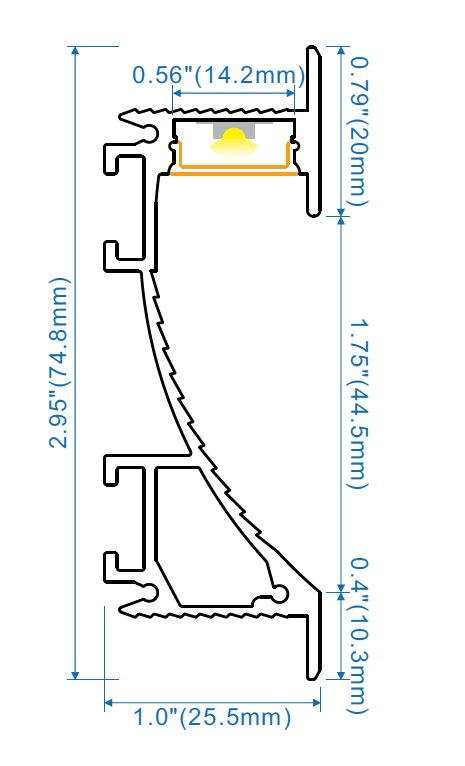

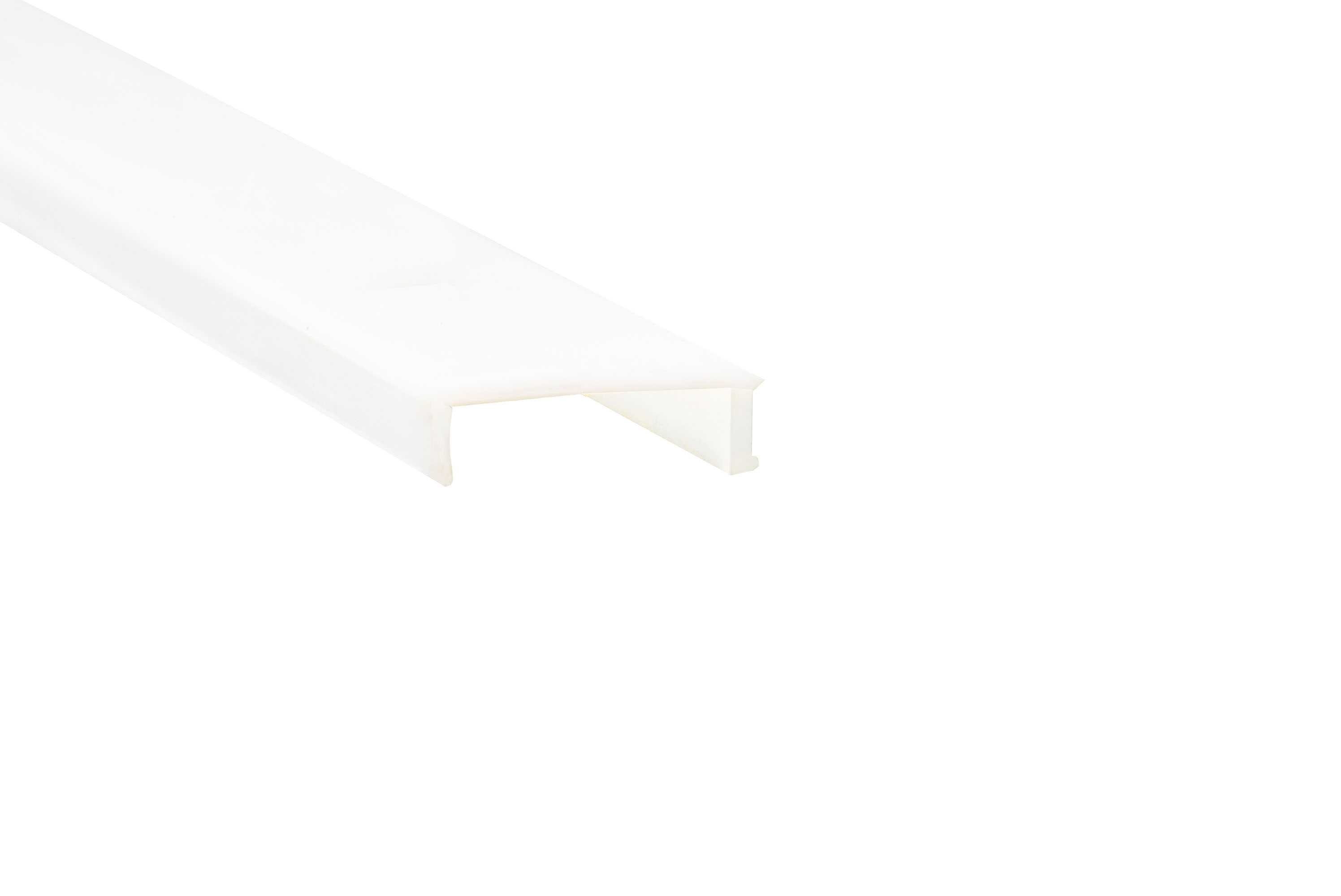

The 5-LDU7626A is a drywall trimless aluminum LED profile designed for recessed, flush-mount linear lighting installations where a clean, borderless finish is required. With a cross-section of 25.5mm wide x 74.8mm tall, it integrates directly into drywall construction to conceal the LED strip and diffuser assembly within the wall plane. Constructed from 6063-T5 aluminum with a high-standard anodized surface treatment, the profile functions as both a heat sink and physical protection for the LED strip. It accommodates flexible LED strips up to 14mm in width. The included milky PC diffuser provides 86% light transmission with medium coefficient diffusion, delivering uniform brightness while eliminating visible LED hotspots. The profile is rated for operating temperatures from -50°C to 100°C and is available in standard silver anodized, white painted, and black anodized finishes, with diffuser options in transparent, milky, and black. Maximum available length is 13.2 ft (4m).
