M-28N-60-40K-UL-CRI97
Discontinued Item- FINAL SALE - Limited 30-day Warranty- Price Drop 45%- CRI 97 Series LED Strip Light 360lm m 4000K 12VDC 60 chips m 4.8w m IP20 SMD2835 2OZ FPC-8mm PCB 3M Adhesive Backing 5m roll CE RoHS UL Listed.
Selecciona una opción
Aplicaciones típicas
- Cove lighting
- Display case illumination
- Architectural accent lighting
- Under-cabinet task lighting
- General indoor ambient lighting

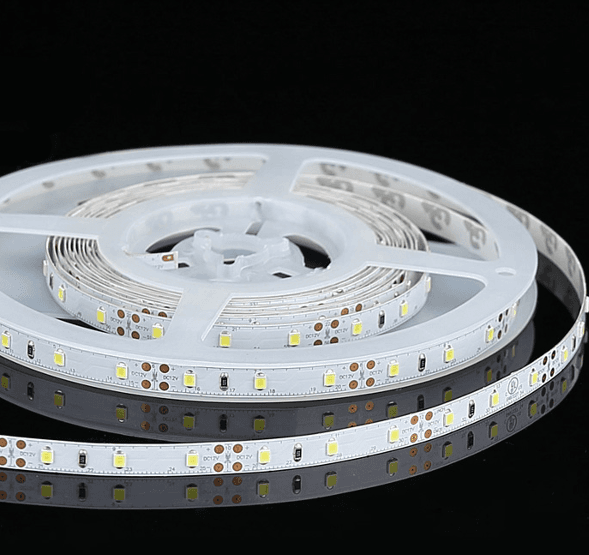

The M-28N-60-40K-UL-CRI97 is a 4.8W/m LED strip light built for commercial and residential accent, task, and general illumination applications where accurate color rendering matters. Each 5-meter roll uses 60 SMD2835 chips per meter on an 8mm FPC circuit board with 3M adhesive backing for direct surface mounting. The strip operates on 12VDC and outputs 360 lm/m at a 4000K neutral white color temperature with a CRI 95 rating. Rated LED lifetime is 50,000 hours, and the strip carries an IP20 environmental rating with an ambient operating range down to -20°C, suitable for dry indoor locations. The product is UL Listed, CE, and RoHS compliant per available product data, and is backed by a 30-day limited warranty.
| Óptica | |
|---|---|
| CCT | 4,000 K |
| CRI | 95 |
| Ángulo de haz | 180° |
| Tipo de chip LED | SMD2835 |
| Densidad de LED | 60 LEDs/m |
| Vida útil del LED | 50,000 h |
| Ambiental | |
| Grado IP | IP20 |
| Temperatura ambiente de operación | -20 °C(-4 °F) |
| Eléctrica | |
|---|---|
| Voltaje de operación | 12 V |
| Mecánica | |
| Largo | 5 m(16.4 ft) |
| Ancho de la tira | 8 mm(0.31 in) |
| Material | 2OZ FPC |
| Montaje | 3M Adhesive Backing |
| Cumplimiento | |
| Certificaciones | CE, RoHS, UL Listed |
| Pedido | |
| Garantía | 30 días |
Especificaciones completas del fabricante, dimensiones y detalle de conexión.
Descargar ficha técnicaOpiniones de clientes
