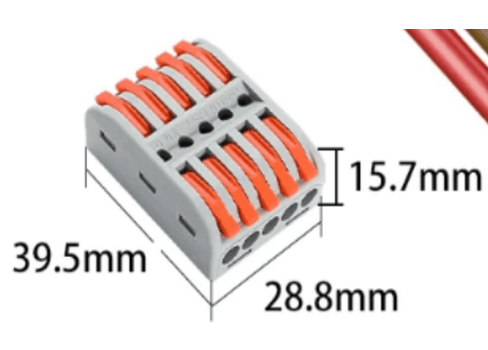

5-5 port press on connector, 250V, 32A, Input: 24AWG - 10AWG (0.05 - 6mm2) Output: 28AWG - 12AWG (0.08 - 4mm2) 5 pcs/Bag

USD 7.10

Disponible — 500 disponibles

Rated for 250V at 32A maximum load
Accepts input wire gauges from 24AWG to 10AWG (0.05-6mm2)
Accepts output wire gauges from 28AWG to 12AWG (0.08-4mm2)
5-port to 5-port press-on configuration
Packaged 5 pieces per bag

De un vistazo

Wire Gauge: 10 AWG

Ficha técnica (PDF)

Envío gratis en pedidos de más de $300
Retiro el mismo día en Doral
Envíos desde Miami, FL
Garantía del fabricante incluida

¿Necesita precio por volumen? Consultar mayoreo

Aplicaciones típicas

Junction box wire splicing
Lighting fixture wiring connections
Low-voltage control wiring
Panel and enclosure wire termination

This press-on connector provides a 5-to-5 port wire splicing solution for electrical and lighting installations requiring quick, tool-optional termination. It accepts a range of conductor sizes on both input and output sides, making it suitable for connecting mixed-gauge wiring runs. The connector is rated for 250V and 32A, with an input range of 24AWG-10AWG (0.05-6mm2) and an output range of 28AWG-12AWG (0.08-4mm2). It is supplied in packs of 5 pieces per bag.
