CA4J-20-50

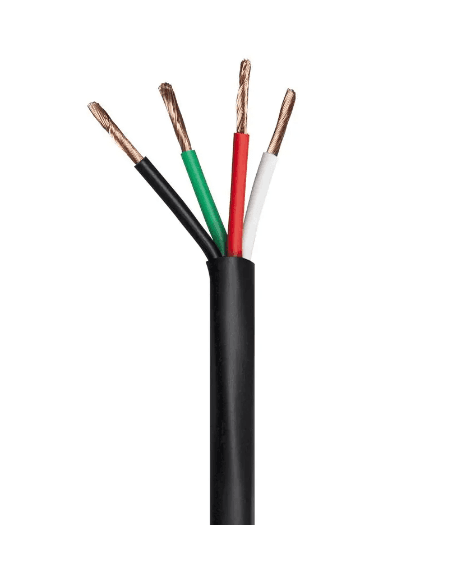

20 AWG 4-Conductor PVC-Jacketed Cable, 300V, UL2464, 50 ft Roll
- UL2464 style construction rated 300V and 80°C continuous
- 21/0.16 mm stranded copper conductors, 0.42 mm cross-section
- Individually insulated conductors in red, black, green, and white
- Black PVC jacket, 5.5 ±0.15 mm overall diameter, 1.02 mm average wall
- Supplied in 50 ft (15.5 m) rolls for cut-to-length runs
- RoHS compliant with VW-1 and FT1 flame markings on the jacket
- Retiro el mismo día en Doral
This 20 AWG, 4-conductor PVC-jacketed cable is supplied in 50 ft (15.5 m) rolls and built to UL2464 style requirements. It is suited to general wiring, control circuits, and low-voltage signal runs in commercial and light industrial environments. Each conductor is stranded 21/0.16 mm copper with a 0.42 mm cross-sectional area and individual PVC insulation in red, black, green, and white. The overall black PVC jacket has a nominal outer diameter of 5.5 ±0.15 mm and an average wall thickness of 1.02 mm. The cable carries a 300V rating and an 80°C continuous temperature rating, with VW-1 and FT1 flame markings printed on the jacket. RoHS compliant, UL2464 style, backed by a 1-year warranty.
