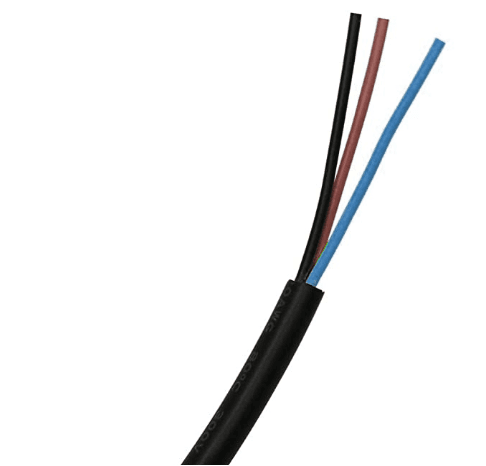

16 AWG 3-Conductor Silicone Cable, Tinned Copper, 350 V, 660 ft Roll

The CA3J-16-S is a 16 AWG, three-conductor cable with silicone rubber insulation and a black silicone rubber jacket, supplied in 660 ft (200 m) rolls. It is intended for heavy-duty electrical wiring where flexibility, durability, and multi-conductor connectivity are required. Conductors are tinned copper in a 26/0.254 mm stranding with a 1.32 mm cross-sectional area, rated 350 V and usable from -60 °C to 200 °C. The jacket measures 7.0 mm in diameter with a 0.76 mm nominal wall over 2.4 mm insulated cores. Insulation is color-coded red, blue, and brown for identification during termination. Covered by a 1-year warranty.
