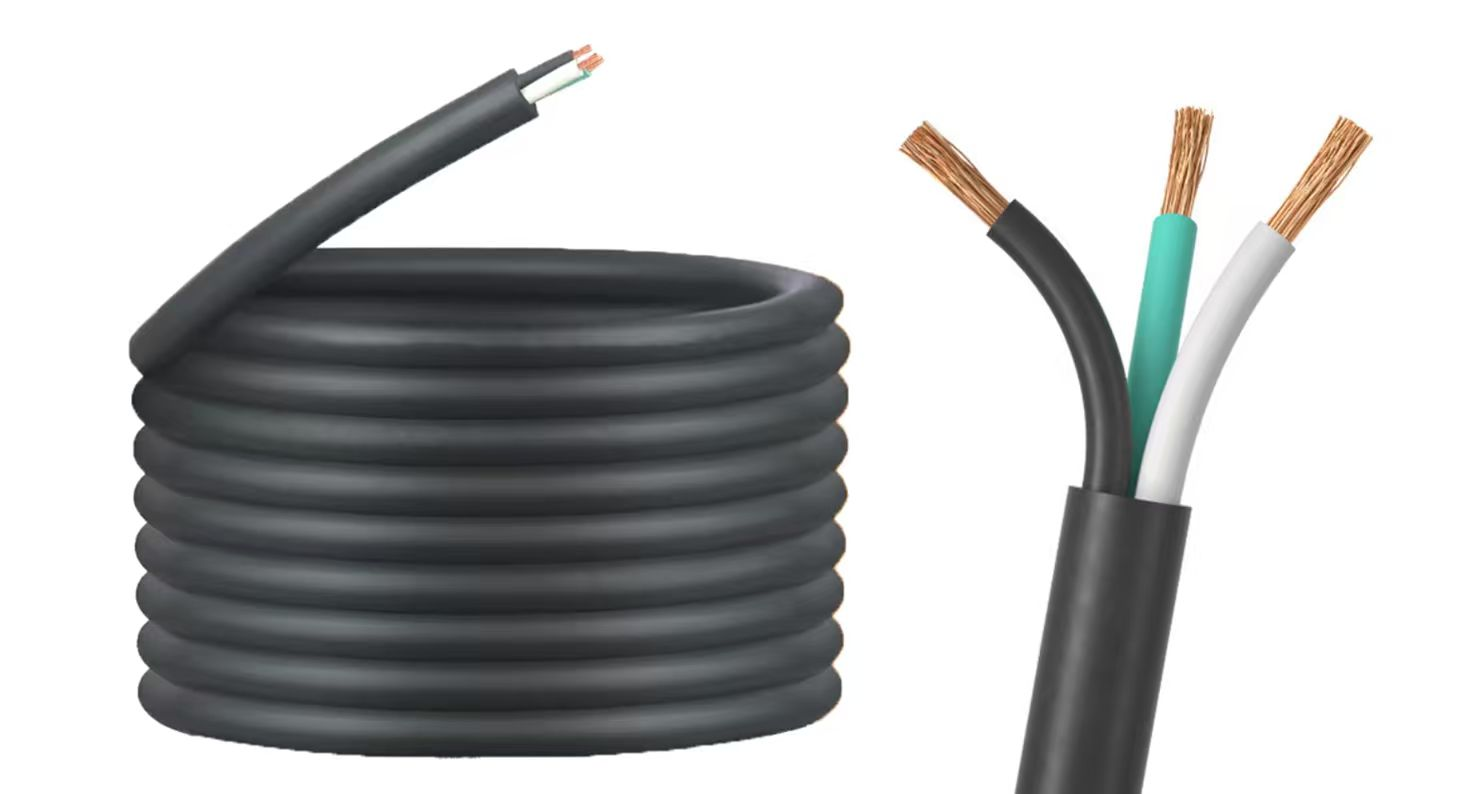

CA3J-12-30
12AWG, 3P wire cable with black silicone jacket ,300V, 30Mper roll, cable colors color:black/white/green, UL Listed
- 12 AWG three-conductor cord with 47/0.3 stranded copper
- 300 V rating verified by 2000 V one-minute withstand test
- Rubber jacket with cotton yarn filling rated to 105 C
- Finished outer diameter of 11.2 +/-0.2 mm
- Conductor resistance held to 5.5 ohm/km or less
- UL Listed and tested to VW-1/FT1 flame requirements
De un vistazo
- LED Lifetime
- 50,000 h
- Operating Voltage
- 300 V
- Wire Gauge
- 12 AWG
- Product Dimensions
- 11.2 +/-0.2 mm outer diameter
- Length
- 30 m
- Finish
- Black
- UL Listed
- Envío gratis en pedidos de más de $300
- Retiro el mismo día en Doral
- Envíos desde Miami, FL
- Garantía del fabricante incluida
Aplicaciones típicas
- Portable equipment and machine cord sets
- Temporary construction power drops
- Stage, studio and event power distribution
- Industrial tool and motor feeds
- Fixture and sign whip assemblies
SJOOW 12 AWG/3C portable power cord supplied on 30 m rolls for equipment cord sets, machine feeds and temporary power drops. The black rubber jacket with cotton yarn filling covers three color-coded conductors in black, white and green. The cord is rated 300 V at 105 C, with a finished outer diameter of 11.2 +/-0.2 mm and 47/0.3 stranded copper conductors. Conductor resistance is held to 5.5 ohm/km or less, and the assembly withstands 2000 V for one minute without breakdown or flashover. Jacket tensile strength is not less than 10.3 MPa with elongation at break not less than 200 percent. The cord is UL Listed and passes VW-1/FT1 flame testing.
| Óptica | |
|---|---|
| Vida útil del LED | 50,000 h |
| Mecánica | |
| Dimensiones | 11.2 +/-0.2 mm outer diameter |
| Largo | 30 m(98.4 ft) |
| Acabado | Black |
| Material | Rubber jacket with cotton yarn filling |
| Eléctrica | |
|---|---|
| Voltaje de operación | 300 V |
| Calibre del cable | 12 AWG |
| Ambiental | |
| Temperatura ambiente de operación | 105 °C(221 °F) |
| Cumplimiento | |
| Certificaciones | UL |
Especificaciones completas del fabricante, dimensiones y detalle de conexión.
