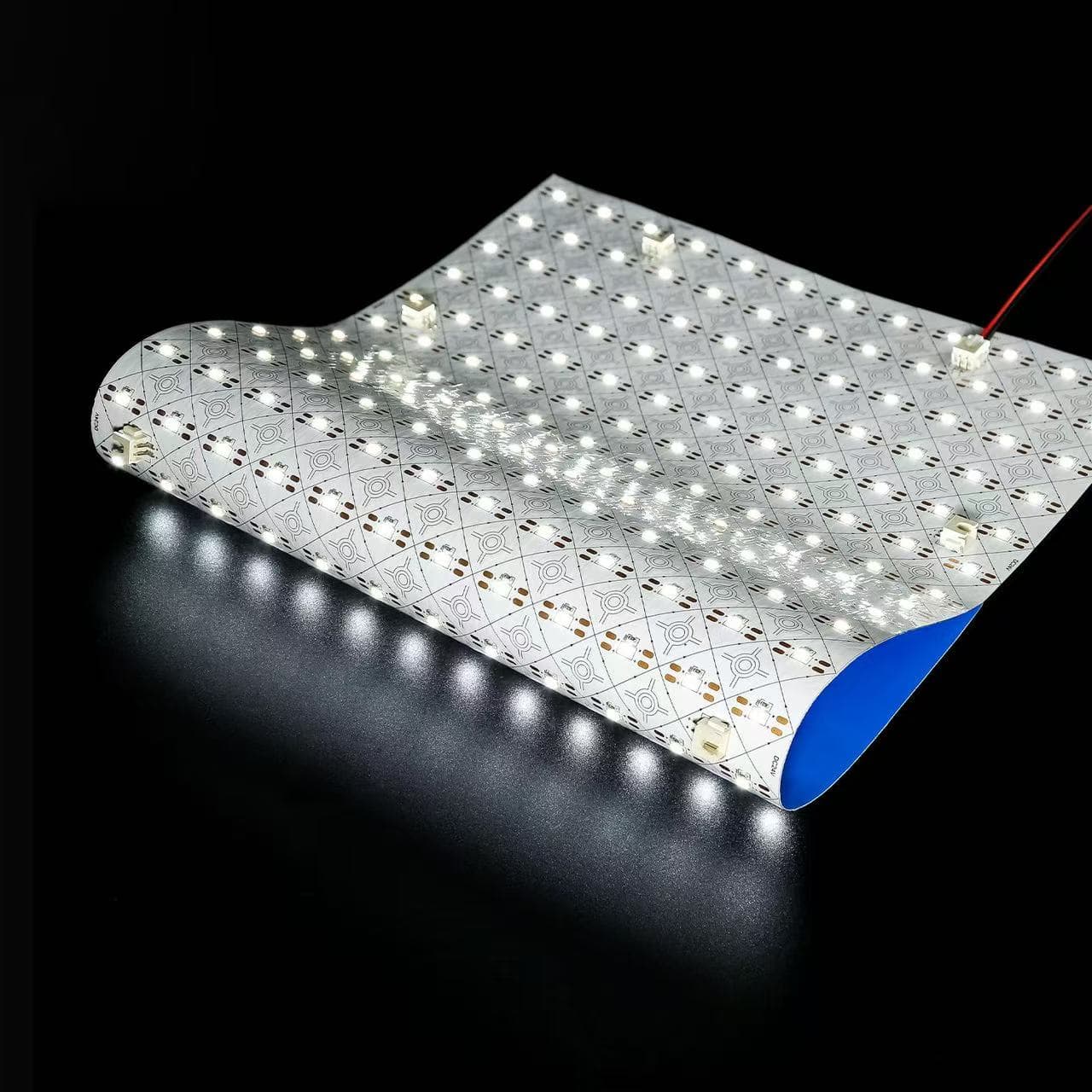

LED Panel Sheet, 43 W/m, 5000 K, 600 LEDs/m, 24 V DC, IP20, 5 m Cuttable Roll

The APOLO FLEX 180 LED panel sheet is a flexible 24 V DC lighting matrix supplied in 5 m rolls measuring 500 x 24 cm. The sheet can be cut along pre-marked straight, stepped or diagonal routing lines and shaped for backlit surfaces, bar and hospitality installations, billboards and large-area indoor lighting. The SMD2835 matrix carries 600 LEDs per meter and draws 43 W/m at 1.8 A/m, producing 3200 lm/m at 5000 K with CRI 80 and a 120-degree emitting angle. Rated LED lifetime is 50,000 hours. The IP20 sheet operates from -20 C to +45 C at 40 to 70 percent RH, and mounts with 3M adhesive backing or screws at the marked positions. One connector feed supports up to 3 m of sheet; parallel connection to the supply is recommended to limit voltage drop. Double-layer PCB construction with lead-free SMT assembly, UL marking on the PCB and RoHS compliance. Three-year warranty.
